Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: BeginFunctionType
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5
Containing Schema: oval-definitions-schema.xsd
Abstract
Documentation:
The begin function takes a single string component and defines a character (or string) that the component string should start with. The character attribute defines the specific character (or string). The character (or string) is only added to the component string if the component string doesn't already start with the specified character (or string).

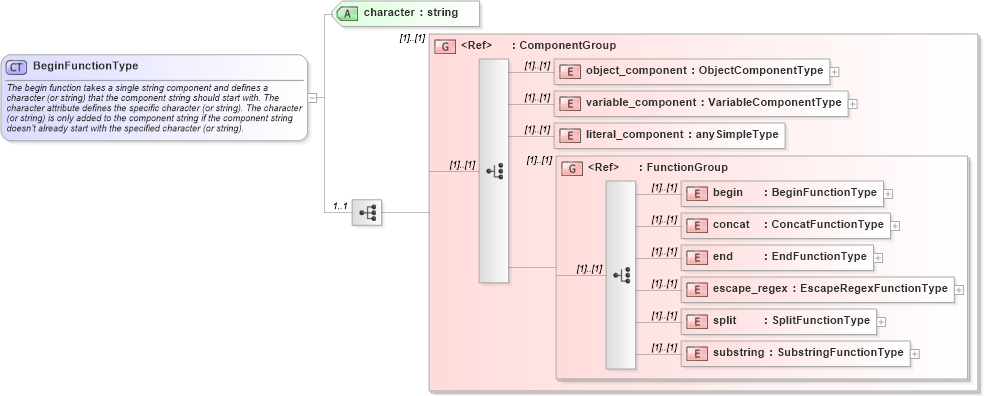

Collapse XSD Schema Diagram:
Drilldown into substring in schema oval-definitions-schema_xsd Drilldown into split in schema oval-definitions-schema_xsd Drilldown into escape_regex in schema oval-definitions-schema_xsd Drilldown into end in schema oval-definitions-schema_xsd Drilldown into concat in schema oval-definitions-schema_xsd Drilldown into begin in schema oval-definitions-schema_xsd Drilldown into FunctionGroup in schema oval-definitions-schema_xsd Drilldown into literal_component in schema oval-definitions-schema_xsd Drilldown into variable_component in schema oval-definitions-schema_xsd Drilldown into object_component in schema oval-definitions-schema_xsd Drilldown into ComponentGroup in schema oval-definitions-schema_xsd Drilldown into character in schema oval-definitions-schema_xsdXSD Diagram of BeginFunctionType in schema oval-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="BeginFunctionType">
    <xsd:annotation>
        <xsd:documentation>The begin function takes a single string component and defines a character (or string) that the component string should start with. The character attribute defines the specific character (or string). The character (or string) is only added to the component string if the component string doesn't already start with the specified character (or string).</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence minOccurs="1" maxOccurs="1">
        <xsd:group ref="oval-def:ComponentGroup" />
    </xsd:sequence>
    <xsd:attribute name="character" type="xsd:string" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
object_component oval-def:object_component (1) (1)
variable_component oval-def:variable_component (1) (1)
literal_component oval-def:literal_component (1) (1)
begin oval-def:begin (1) (1)
concat oval-def:concat (1) (1)
end oval-def:end (1) (1)
escape_regex oval-def:escape_regex (1) (1)
split oval-def:split (1) (1)
substring oval-def:substring (1) (1)
<xs:group> oval-def:ComponentGroup (1) (1)
<xs:group> oval-def:FunctionGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
character oval-def:character Required
Collapse Derivation Tree:
Collapse References:
oval-def:begin
