Definition Type: ComplexType
Name: CT_Arc
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml-main.xsd
Abstract

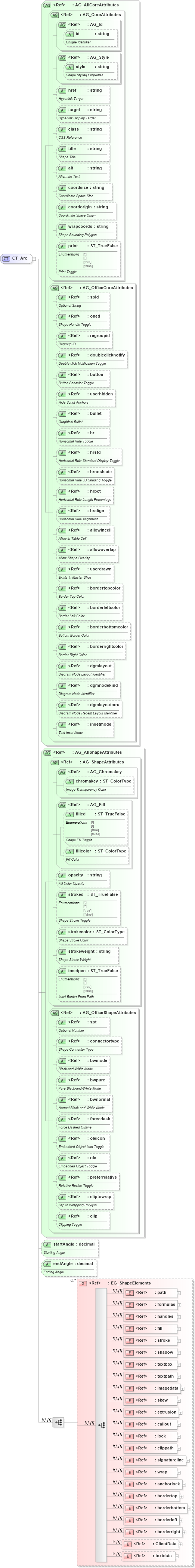

Collapse XSD Schema Diagram:
Drilldown into textdata in schema vml-presentationdrawing_xsd Drilldown into ClientData in schema vml-spreadsheetdrawing_xsd Drilldown into borderright in schema vml-wordprocessingdrawing_xsd Drilldown into borderleft in schema vml-wordprocessingdrawing_xsd Drilldown into borderbottom in schema vml-wordprocessingdrawing_xsd Drilldown into bordertop in schema vml-wordprocessingdrawing_xsd Drilldown into anchorlock in schema vml-wordprocessingdrawing_xsd Drilldown into wrap in schema vml-wordprocessingdrawing_xsd Drilldown into signatureline in schema vml-officedrawing_xsd Drilldown into clippath in schema vml-officedrawing_xsd Drilldown into lock in schema vml-officedrawing_xsd Drilldown into callout in schema vml-officedrawing_xsd Drilldown into extrusion in schema vml-officedrawing_xsd Drilldown into skew in schema vml-officedrawing_xsd Drilldown into imagedata in schema vml-main_xsd Drilldown into textpath in schema vml-main_xsd Drilldown into textbox in schema vml-main_xsd Drilldown into shadow in schema vml-main_xsd Drilldown into stroke in schema vml-main_xsd Drilldown into fill in schema vml-main_xsd Drilldown into handles in schema vml-main_xsd Drilldown into formulas in schema vml-main_xsd Drilldown into path in schema vml-main_xsd Drilldown into EG_ShapeElements in schema vml-main_xsd Drilldown into endAngle in schema vml-main_xsd Drilldown into startAngle in schema vml-main_xsd Drilldown into clip in schema vml-officedrawing_xsd Drilldown into cliptowrap in schema vml-officedrawing_xsd Drilldown into preferrelative in schema vml-officedrawing_xsd Drilldown into ole in schema vml-officedrawing_xsd Drilldown into oleicon in schema vml-officedrawing_xsd Drilldown into forcedash in schema vml-officedrawing_xsd Drilldown into bwnormal in schema vml-officedrawing_xsd Drilldown into bwpure in schema vml-officedrawing_xsd Drilldown into bwmode in schema vml-officedrawing_xsd Drilldown into connectortype in schema vml-officedrawing_xsd Drilldown into spt in schema vml-officedrawing_xsd Drilldown into AG_OfficeShapeAttributes in schema vml-main_xsd Drilldown into insetpen in schema vml-main_xsd Drilldown into strokeweight in schema vml-main_xsd Drilldown into strokecolor in schema vml-main_xsd Drilldown into stroked in schema vml-main_xsd Drilldown into opacity in schema vml-main_xsd Drilldown into fillcolor in schema vml-main_xsd Drilldown into filled in schema vml-main_xsd Drilldown into AG_Fill in schema vml-main_xsd Drilldown into chromakey in schema vml-main_xsd Drilldown into AG_Chromakey in schema vml-main_xsd Drilldown into AG_ShapeAttributes in schema vml-main_xsd Drilldown into AG_AllShapeAttributes in schema vml-main_xsd Drilldown into insetmode in schema vml-officedrawing_xsd Drilldown into dgmlayoutmru in schema vml-officedrawing_xsd Drilldown into dgmnodekind in schema vml-officedrawing_xsd Drilldown into dgmlayout in schema vml-officedrawing_xsd Drilldown into borderrightcolor in schema vml-officedrawing_xsd Drilldown into borderbottomcolor in schema vml-officedrawing_xsd Drilldown into borderleftcolor in schema vml-officedrawing_xsd Drilldown into bordertopcolor in schema vml-officedrawing_xsd Drilldown into userdrawn in schema vml-officedrawing_xsd Drilldown into allowoverlap in schema vml-officedrawing_xsd Drilldown into allowincell in schema vml-officedrawing_xsd Drilldown into hralign in schema vml-officedrawing_xsd Drilldown into hrpct in schema vml-officedrawing_xsd Drilldown into hrnoshade in schema vml-officedrawing_xsd Drilldown into hrstd in schema vml-officedrawing_xsd Drilldown into hr in schema vml-officedrawing_xsd Drilldown into bullet in schema vml-officedrawing_xsd Drilldown into userhidden in schema vml-officedrawing_xsd Drilldown into button in schema vml-officedrawing_xsd Drilldown into doubleclicknotify in schema vml-officedrawing_xsd Drilldown into regroupid in schema vml-officedrawing_xsd Drilldown into oned in schema vml-officedrawing_xsd Drilldown into spid in schema vml-officedrawing_xsd Drilldown into AG_OfficeCoreAttributes in schema vml-main_xsd Drilldown into print in schema vml-main_xsd Drilldown into wrapcoords in schema vml-main_xsd Drilldown into coordorigin in schema vml-main_xsd Drilldown into coordsize in schema vml-main_xsd Drilldown into alt in schema vml-main_xsd Drilldown into title in schema vml-main_xsd Drilldown into class in schema vml-main_xsd Drilldown into target in schema vml-main_xsd Drilldown into href in schema vml-main_xsd Drilldown into style in schema vml-main_xsd Drilldown into AG_Style in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsd Drilldown into AG_CoreAttributes in schema vml-main_xsd Drilldown into AG_AllCoreAttributes in schema vml-main_xsdXSD Diagram of CT_Arc in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Arc">
    <xsd:sequence>
        <xsd:group ref="EG_ShapeElements" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attributeGroup ref="AG_AllCoreAttributes" />
    <xsd:attributeGroup ref="AG_AllShapeAttributes" />
    <xsd:attribute name="startAngle" type="xsd:decimal" use="optional">
        <xsd:annotation>
            <xsd:documentation>Starting Angle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="endAngle" type="xsd:decimal" use="optional">
        <xsd:annotation>
            <xsd:documentation>Ending Angle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
path v:path (1) (1)
formulas v:formulas (1) (1)
handles v:handles (1) (1)
fill v:fill (1) (1)
stroke v:stroke (1) (1)
shadow v:shadow (1) (1)
textbox v:textbox (1) (1)
textpath v:textpath (1) (1)
imagedata v:imagedata (1) (1)
skew o:skew (1) (1)
extrusion o:extrusion (1) (1)
callout o:callout (1) (1)
lock o:lock (1) (1)
clippath o:clippath (1) (1)
signatureline o:signatureline (1) (1)
wrap wvml:wrap (1) (1)
anchorlock wvml:anchorlock (1) (1)
bordertop wvml:bordertop (1) (1)
borderbottom wvml:borderbottom (1) (1)
borderleft wvml:borderleft (1) (1)
borderright wvml:borderright (1) (1)
ClientData x:ClientData 0 (1)
textdata p:textdata 0 (1)
<xs:group> v:EG_ShapeElements 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
style v:style Optional
href v:href Optional
target v:target Optional
class v:class Optional
title v:title Optional
alt v:alt Optional
coordsize v:coordsize Optional
coordorigin v:coordorigin Optional
wrapcoords v:wrapcoords Optional
print v:print Optional
spid o:spid (Optional)
oned o:oned (Optional)
regroupid o:regroupid (Optional)
doubleclicknotify o:doubleclicknotify (Optional)
button o:button (Optional)
userhidden o:userhidden (Optional)
bullet o:bullet (Optional)
hr o:hr (Optional)
hrstd o:hrstd (Optional)
hrnoshade o:hrnoshade (Optional)
hrpct o:hrpct (Optional)
hralign o:hralign (Optional)
allowincell o:allowincell (Optional)
allowoverlap o:allowoverlap (Optional)
userdrawn o:userdrawn (Optional)
bordertopcolor o:bordertopcolor (Optional)
borderleftcolor o:borderleftcolor (Optional)
borderbottomcolor o:borderbottomcolor (Optional)
borderrightcolor o:borderrightcolor (Optional)
dgmlayout o:dgmlayout (Optional)
dgmnodekind o:dgmnodekind (Optional)
dgmlayoutmru o:dgmlayoutmru (Optional)
insetmode o:insetmode (Optional)
chromakey v:chromakey Optional
filled v:filled Optional
fillcolor v:fillcolor Optional
opacity v:opacity Optional
stroked v:stroked Optional
strokecolor v:strokecolor Optional
strokeweight v:strokeweight Optional
insetpen v:insetpen Optional
spt o:spt (Optional)
connectortype o:connectortype (Optional)
bwmode o:bwmode (Optional)
bwpure o:bwpure (Optional)
bwnormal o:bwnormal (Optional)
forcedash o:forcedash (Optional)
oleicon o:oleicon (Optional)
ole o:ole (Optional)
preferrelative o:preferrelative (Optional)
cliptowrap o:cliptowrap (Optional)
clip o:clip (Optional)
startAngle v:startAngle Optional
endAngle v:endAngle Optional
Collapse Derivation Tree:
Collapse References:
v:arc
