Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: DeliveryInstructionSequence
Namespace: http://www.papinet.org/v2r40
Containing Schema: DeliveryInstructionV2R40.xsd
Abstract

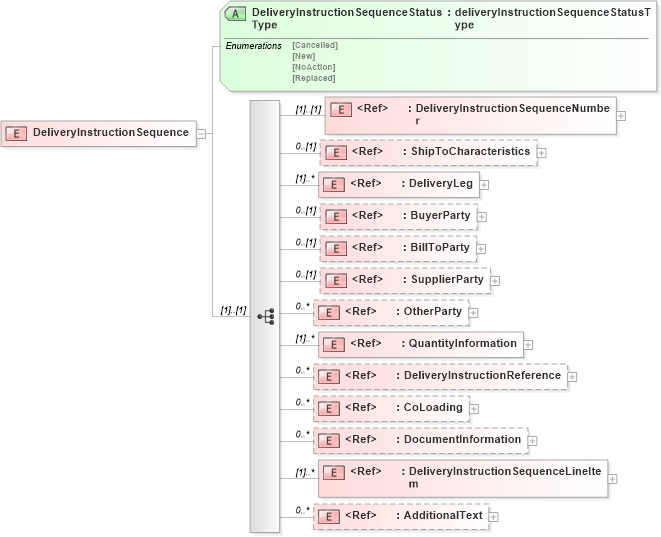

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryInstructionSequenceLineItem in schema deliveryinstructionv2r40_xsd Drilldown into DocumentInformation in schema papinetcommondefsv2r40_xsd Drilldown into CoLoading in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryInstructionReference in schema papinetcommondefsv2r40_xsd Drilldown into QuantityInformation in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into BillToParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryLeg in schema papinetcommondefsv2r40_xsd Drilldown into ShipToCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryInstructionSequenceNumber in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryInstructionSequenceStatusType in schema deliveryinstructionv2r40_xsdXSD Diagram of DeliveryInstructionSequence in schema deliveryinstructionv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="DeliveryInstructionSequence">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="DeliveryInstructionSequenceNumber" />
            <xs:element ref="ShipToCharacteristics" minOccurs="0" />
            <xs:element ref="DeliveryLeg" maxOccurs="unbounded" />
            <xs:element ref="BuyerParty" minOccurs="0" />
            <xs:element ref="BillToParty" minOccurs="0" />
            <xs:element ref="SupplierParty" minOccurs="0" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="QuantityInformation" maxOccurs="unbounded" />
            <xs:element ref="DeliveryInstructionReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="CoLoading" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="DocumentInformation" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="DeliveryInstructionSequenceLineItem" maxOccurs="unbounded" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="DeliveryInstructionSequenceStatusType" type="deliveryInstructionSequenceStatusType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeliveryInstructionSequenceNumber pn:DeliveryInstructionSequenceNumber (1) (1)
ShipToCharacteristics pn:ShipToCharacteristics 0 (1)
DeliveryLeg pn:DeliveryLeg (1) unbounded
BuyerParty pn:BuyerParty 0 (1)
BillToParty pn:BillToParty 0 (1)
SupplierParty pn:SupplierParty 0 (1)
OtherParty pn:OtherParty 0 unbounded
QuantityInformation pn:QuantityInformation (1) unbounded
DeliveryInstructionReference pn:DeliveryInstructionReference 0 unbounded
CoLoading pn:CoLoading 0 unbounded
DocumentInformation pn:DocumentInformation 0 unbounded
DeliveryInstructionSequenceLineItem pn:DeliveryInstructionSequenceLineItem (1) unbounded
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
DeliveryInstructionSequenceStatusType pn:DeliveryInstructionSequenceStatusType Required
