Definition Type: ComplexType
Name: NAPlywoodOSBCharacteristicsClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

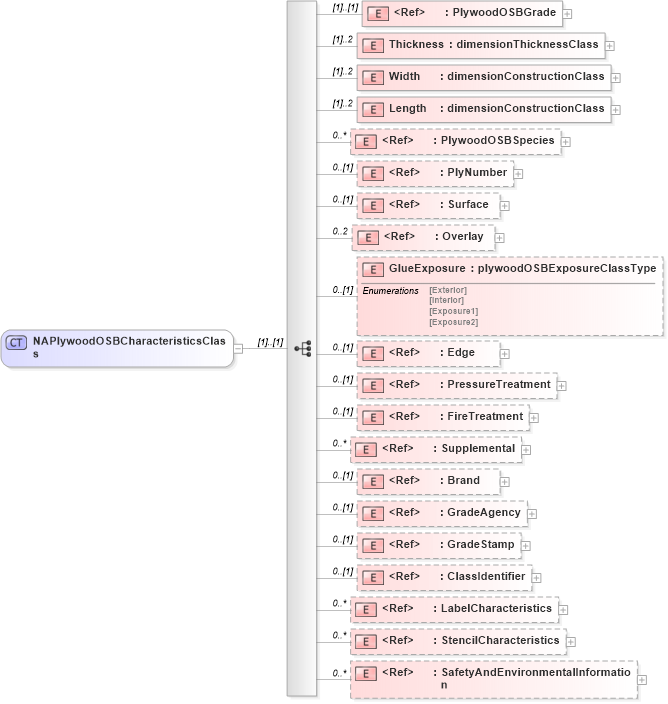

Collapse XSD Schema Diagram:
Drilldown into SafetyAndEnvironmentalInformation in schema papinetcommondefsv2r40_xsd Drilldown into StencilCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into LabelCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into ClassIdentifier in schema papinetcommondefsv2r40_xsd Drilldown into GradeStamp in schema papinetcommondefsv2r40_xsd Drilldown into GradeAgency in schema papinetcommondefsv2r40_xsd Drilldown into Brand in schema papinetcommondefsv2r40_xsd Drilldown into Supplemental in schema papinetcommondefsv2r40_xsd Drilldown into FireTreatment in schema papinetcommondefsv2r40_xsd Drilldown into PressureTreatment in schema papinetcommondefsv2r40_xsd Drilldown into Edge in schema papinetcommondefsv2r40_xsd Drilldown into GlueExposure in schema papinetcommondefsv2r40_xsd Drilldown into Overlay in schema papinetcommondefsv2r40_xsd Drilldown into Surface in schema papinetcommondefsv2r40_xsd Drilldown into PlyNumber in schema papinetcommondefsv2r40_xsd Drilldown into PlywoodOSBSpecies in schema papinetcommondefsv2r40_xsd Drilldown into Length in schema papinetcommondefsv2r40_xsd Drilldown into Width in schema papinetcommondefsv2r40_xsd Drilldown into Thickness in schema papinetcommondefsv2r40_xsd Drilldown into PlywoodOSBGrade in schema papinetcommondefsv2r40_xsdXSD Diagram of NAPlywoodOSBCharacteristicsClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="NAPlywoodOSBCharacteristicsClass">
    <xs:sequence>
        <xs:element ref="PlywoodOSBGrade" />
        <xs:element name="Thickness" type="dimensionThicknessClass" maxOccurs="2" />
        <xs:element name="Width" type="dimensionConstructionClass" maxOccurs="2" />
        <xs:element name="Length" type="dimensionConstructionClass" maxOccurs="2" />
        <xs:element ref="PlywoodOSBSpecies" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="PlyNumber" minOccurs="0" />
        <xs:element ref="Surface" minOccurs="0" />
        <xs:element ref="Overlay" minOccurs="0" maxOccurs="2" />
        <xs:element name="GlueExposure" type="plywoodOSBExposureClassType" minOccurs="0" />
        <xs:element ref="Edge" minOccurs="0" />
        <xs:element ref="PressureTreatment" minOccurs="0" />
        <xs:element ref="FireTreatment" minOccurs="0" />
        <xs:element ref="Supplemental" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Brand" minOccurs="0" />
        <xs:element ref="GradeAgency" minOccurs="0" />
        <xs:element ref="GradeStamp" minOccurs="0" />
        <xs:element ref="ClassIdentifier" minOccurs="0" />
        <xs:element ref="LabelCharacteristics" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="StencilCharacteristics" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="SafetyAndEnvironmentalInformation" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PlywoodOSBGrade pn:PlywoodOSBGrade (1) (1)
Thickness pn:Thickness (1) 2
Width pn:Width (1) 2
Length pn:Length (1) 2
PlywoodOSBSpecies pn:PlywoodOSBSpecies 0 unbounded
PlyNumber pn:PlyNumber 0 (1)
Surface pn:Surface 0 (1)
Overlay pn:Overlay 0 2
GlueExposure pn:GlueExposure 0 (1)
Edge pn:Edge 0 (1)
PressureTreatment pn:PressureTreatment 0 (1)
FireTreatment pn:FireTreatment 0 (1)
Supplemental pn:Supplemental 0 unbounded
Brand pn:Brand 0 (1)
GradeAgency pn:GradeAgency 0 (1)
GradeStamp pn:GradeStamp 0 (1)
ClassIdentifier pn:ClassIdentifier 0 (1)
LabelCharacteristics pn:LabelCharacteristics 0 unbounded
StencilCharacteristics pn:StencilCharacteristics 0 unbounded
SafetyAndEnvironmentalInformation pn:SafetyAndEnvironmentalInformation 0 unbounded
Collapse Derivation Tree:
Collapse References:
pn:SoftwoodPlywood
