Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: SoftwoodPlywood
Namespace: http://www.papinet.org/v2r40
Type: pn:NAPlywoodOSBCharacteristicsClass
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

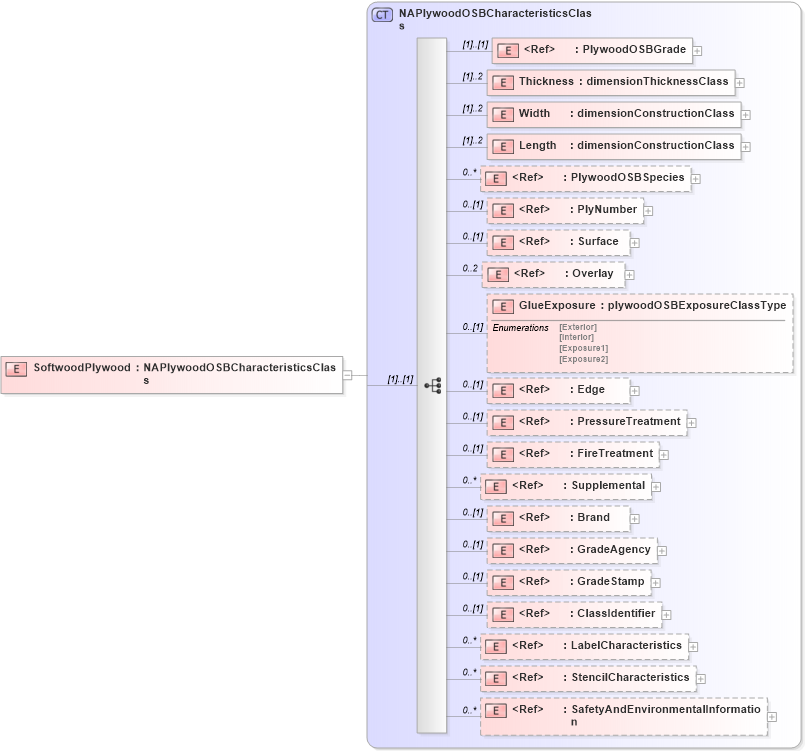

Collapse XSD Schema Diagram:
Drilldown into SafetyAndEnvironmentalInformation in schema papinetcommondefsv2r40_xsd Drilldown into StencilCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into LabelCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into ClassIdentifier in schema papinetcommondefsv2r40_xsd Drilldown into GradeStamp in schema papinetcommondefsv2r40_xsd Drilldown into GradeAgency in schema papinetcommondefsv2r40_xsd Drilldown into Brand in schema papinetcommondefsv2r40_xsd Drilldown into Supplemental in schema papinetcommondefsv2r40_xsd Drilldown into FireTreatment in schema papinetcommondefsv2r40_xsd Drilldown into PressureTreatment in schema papinetcommondefsv2r40_xsd Drilldown into Edge in schema papinetcommondefsv2r40_xsd Drilldown into GlueExposure in schema papinetcommondefsv2r40_xsd Drilldown into Overlay in schema papinetcommondefsv2r40_xsd Drilldown into Surface in schema papinetcommondefsv2r40_xsd Drilldown into PlyNumber in schema papinetcommondefsv2r40_xsd Drilldown into PlywoodOSBSpecies in schema papinetcommondefsv2r40_xsd Drilldown into Length in schema papinetcommondefsv2r40_xsd Drilldown into Width in schema papinetcommondefsv2r40_xsd Drilldown into Thickness in schema papinetcommondefsv2r40_xsd Drilldown into PlywoodOSBGrade in schema papinetcommondefsv2r40_xsd Drilldown into NAPlywoodOSBCharacteristicsClass in schema papinetcommondefsv2r40_xsdXSD Diagram of SoftwoodPlywood in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="SoftwoodPlywood" type="NAPlywoodOSBCharacteristicsClass" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PlywoodOSBGrade pn:PlywoodOSBGrade (1) (1)
Thickness pn:Thickness (1) 2
Width pn:Width (1) 2
Length pn:Length (1) 2
PlywoodOSBSpecies pn:PlywoodOSBSpecies 0 unbounded
PlyNumber pn:PlyNumber 0 (1)
Surface pn:Surface 0 (1)
Overlay pn:Overlay 0 2
GlueExposure pn:GlueExposure 0 (1)
Edge pn:Edge 0 (1)
PressureTreatment pn:PressureTreatment 0 (1)
FireTreatment pn:FireTreatment 0 (1)
Supplemental pn:Supplemental 0 unbounded
Brand pn:Brand 0 (1)
GradeAgency pn:GradeAgency 0 (1)
GradeStamp pn:GradeStamp 0 (1)
ClassIdentifier pn:ClassIdentifier 0 (1)
LabelCharacteristics pn:LabelCharacteristics 0 unbounded
StencilCharacteristics pn:StencilCharacteristics 0 unbounded
SafetyAndEnvironmentalInformation pn:SafetyAndEnvironmentalInformation 0 unbounded
Collapse Derivation Tree:
