Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: SoftwoodLumberCharacteristics
Namespace: http://www.papinet.org/v2r40
Type: pn:softwoodLumberCharacteristicsClass
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

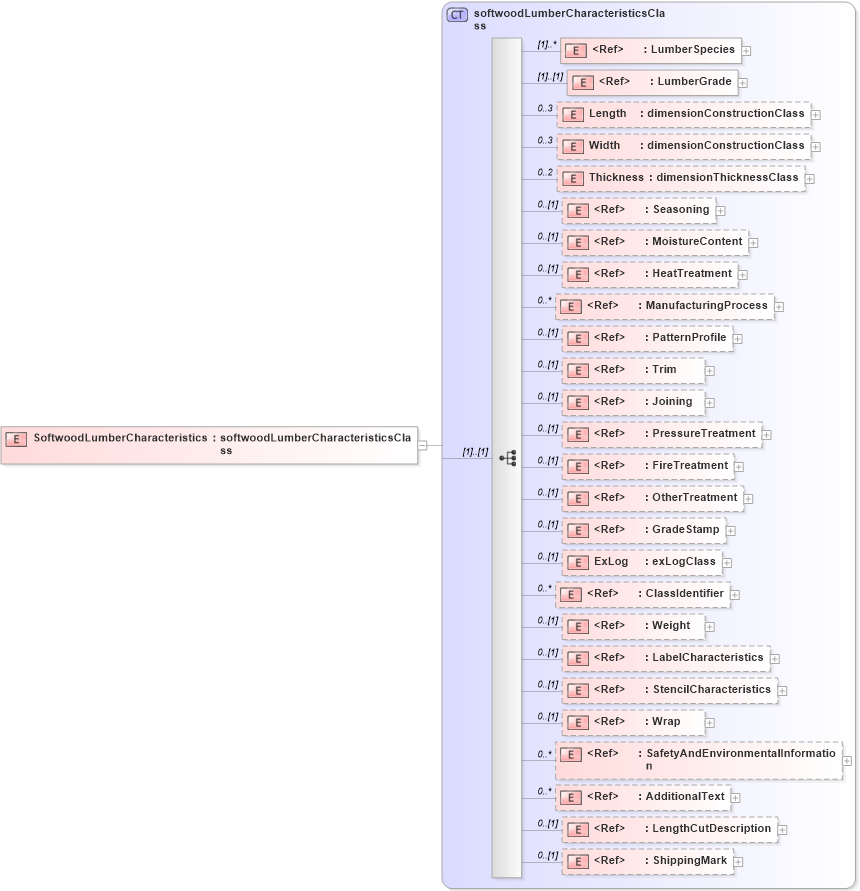

Collapse XSD Schema Diagram:
Drilldown into ShippingMark in schema papinetcommondefsv2r40_xsd Drilldown into LengthCutDescription in schema papinetcommondefsv2r40_xsd Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into SafetyAndEnvironmentalInformation in schema papinetcommondefsv2r40_xsd Drilldown into Wrap in schema papinetcommondefsv2r40_xsd Drilldown into StencilCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into LabelCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into Weight in schema papinetcommondefsv2r40_xsd Drilldown into ClassIdentifier in schema papinetcommondefsv2r40_xsd Drilldown into ExLog in schema papinetcommondefsv2r40_xsd Drilldown into GradeStamp in schema papinetcommondefsv2r40_xsd Drilldown into OtherTreatment in schema papinetcommondefsv2r40_xsd Drilldown into FireTreatment in schema papinetcommondefsv2r40_xsd Drilldown into PressureTreatment in schema papinetcommondefsv2r40_xsd Drilldown into Joining in schema papinetcommondefsv2r40_xsd Drilldown into Trim in schema papinetcommondefsv2r40_xsd Drilldown into PatternProfile in schema papinetcommondefsv2r40_xsd Drilldown into ManufacturingProcess in schema papinetcommondefsv2r40_xsd Drilldown into HeatTreatment in schema papinetcommondefsv2r40_xsd Drilldown into MoistureContent in schema papinetcommondefsv2r40_xsd Drilldown into Seasoning in schema papinetcommondefsv2r40_xsd Drilldown into Thickness in schema papinetcommondefsv2r40_xsd Drilldown into Width in schema papinetcommondefsv2r40_xsd Drilldown into Length in schema papinetcommondefsv2r40_xsd Drilldown into LumberGrade in schema papinetcommondefsv2r40_xsd Drilldown into LumberSpecies in schema papinetcommondefsv2r40_xsd Drilldown into softwoodLumberCharacteristicsClass in schema papinetcommondefsv2r40_xsdXSD Diagram of SoftwoodLumberCharacteristics in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="SoftwoodLumberCharacteristics" type="softwoodLumberCharacteristicsClass" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LumberSpecies pn:LumberSpecies (1) unbounded
LumberGrade pn:LumberGrade (1) (1)
Length pn:Length 0 3
Width pn:Width 0 3
Thickness pn:Thickness 0 2
Seasoning pn:Seasoning 0 (1)
MoistureContent pn:MoistureContent 0 (1)
HeatTreatment pn:HeatTreatment 0 (1)
ManufacturingProcess pn:ManufacturingProcess 0 unbounded
PatternProfile pn:PatternProfile 0 (1)
Trim pn:Trim 0 (1)
Joining pn:Joining 0 (1)
PressureTreatment pn:PressureTreatment 0 (1)
FireTreatment pn:FireTreatment 0 (1)
OtherTreatment pn:OtherTreatment 0 (1)
GradeStamp pn:GradeStamp 0 (1)
ExLog pn:ExLog 0 (1)
ClassIdentifier pn:ClassIdentifier 0 unbounded
Weight pn:Weight 0 (1)
LabelCharacteristics pn:LabelCharacteristics 0 (1)
StencilCharacteristics pn:StencilCharacteristics 0 (1)
Wrap pn:Wrap 0 (1)
SafetyAndEnvironmentalInformation pn:SafetyAndEnvironmentalInformation 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
LengthCutDescription pn:LengthCutDescription 0 (1)
ShippingMark pn:ShippingMark 0 (1)
Collapse Derivation Tree:
