Definition Type: ComplexType
Name: softwoodLumberCharacteristicsClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

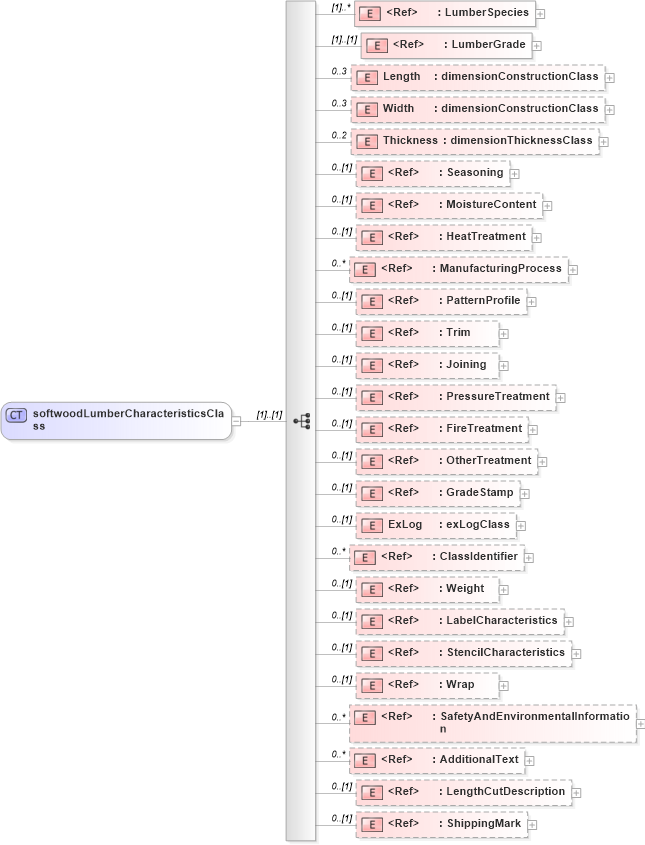

Collapse XSD Schema Diagram:
Drilldown into ShippingMark in schema papinetcommondefsv2r40_xsd Drilldown into LengthCutDescription in schema papinetcommondefsv2r40_xsd Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into SafetyAndEnvironmentalInformation in schema papinetcommondefsv2r40_xsd Drilldown into Wrap in schema papinetcommondefsv2r40_xsd Drilldown into StencilCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into LabelCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into Weight in schema papinetcommondefsv2r40_xsd Drilldown into ClassIdentifier in schema papinetcommondefsv2r40_xsd Drilldown into ExLog in schema papinetcommondefsv2r40_xsd Drilldown into GradeStamp in schema papinetcommondefsv2r40_xsd Drilldown into OtherTreatment in schema papinetcommondefsv2r40_xsd Drilldown into FireTreatment in schema papinetcommondefsv2r40_xsd Drilldown into PressureTreatment in schema papinetcommondefsv2r40_xsd Drilldown into Joining in schema papinetcommondefsv2r40_xsd Drilldown into Trim in schema papinetcommondefsv2r40_xsd Drilldown into PatternProfile in schema papinetcommondefsv2r40_xsd Drilldown into ManufacturingProcess in schema papinetcommondefsv2r40_xsd Drilldown into HeatTreatment in schema papinetcommondefsv2r40_xsd Drilldown into MoistureContent in schema papinetcommondefsv2r40_xsd Drilldown into Seasoning in schema papinetcommondefsv2r40_xsd Drilldown into Thickness in schema papinetcommondefsv2r40_xsd Drilldown into Width in schema papinetcommondefsv2r40_xsd Drilldown into Length in schema papinetcommondefsv2r40_xsd Drilldown into LumberGrade in schema papinetcommondefsv2r40_xsd Drilldown into LumberSpecies in schema papinetcommondefsv2r40_xsdXSD Diagram of softwoodLumberCharacteristicsClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="softwoodLumberCharacteristicsClass">
    <xs:sequence>
        <xs:element ref="LumberSpecies" maxOccurs="unbounded" />
        <xs:element ref="LumberGrade" />
        <xs:element name="Length" type="dimensionConstructionClass" minOccurs="0" maxOccurs="3" />
        <xs:element name="Width" type="dimensionConstructionClass" minOccurs="0" maxOccurs="3" />
        <xs:element name="Thickness" type="dimensionThicknessClass" minOccurs="0" maxOccurs="2" />
        <xs:element ref="Seasoning" minOccurs="0" />
        <xs:element ref="MoistureContent" minOccurs="0" />
        <xs:element ref="HeatTreatment" minOccurs="0" />
        <xs:element ref="ManufacturingProcess" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="PatternProfile" minOccurs="0" />
        <xs:element ref="Trim" minOccurs="0" />
        <xs:element ref="Joining" minOccurs="0" />
        <xs:element ref="PressureTreatment" minOccurs="0" />
        <xs:element ref="FireTreatment" minOccurs="0" />
        <xs:element ref="OtherTreatment" minOccurs="0" />
        <xs:element ref="GradeStamp" minOccurs="0" />
        <xs:element name="ExLog" type="exLogClass" minOccurs="0" />
        <xs:element ref="ClassIdentifier" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Weight" minOccurs="0" />
        <xs:element ref="LabelCharacteristics" minOccurs="0" />
        <xs:element ref="StencilCharacteristics" minOccurs="0" />
        <xs:element ref="Wrap" minOccurs="0" />
        <xs:element ref="SafetyAndEnvironmentalInformation" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="LengthCutDescription" minOccurs="0" />
        <xs:element ref="ShippingMark" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LumberSpecies pn:LumberSpecies (1) unbounded
LumberGrade pn:LumberGrade (1) (1)
Length pn:Length 0 3
Width pn:Width 0 3
Thickness pn:Thickness 0 2
Seasoning pn:Seasoning 0 (1)
MoistureContent pn:MoistureContent 0 (1)
HeatTreatment pn:HeatTreatment 0 (1)
ManufacturingProcess pn:ManufacturingProcess 0 unbounded
PatternProfile pn:PatternProfile 0 (1)
Trim pn:Trim 0 (1)
Joining pn:Joining 0 (1)
PressureTreatment pn:PressureTreatment 0 (1)
FireTreatment pn:FireTreatment 0 (1)
OtherTreatment pn:OtherTreatment 0 (1)
GradeStamp pn:GradeStamp 0 (1)
ExLog pn:ExLog 0 (1)
ClassIdentifier pn:ClassIdentifier 0 unbounded
Weight pn:Weight 0 (1)
LabelCharacteristics pn:LabelCharacteristics 0 (1)
StencilCharacteristics pn:StencilCharacteristics 0 (1)
Wrap pn:Wrap 0 (1)
SafetyAndEnvironmentalInformation pn:SafetyAndEnvironmentalInformation 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
LengthCutDescription pn:LengthCutDescription 0 (1)
ShippingMark pn:ShippingMark 0 (1)
Collapse Derivation Tree:
Collapse References:
pn:DeckAndPorchFlooringMaterials-NaturalWoodCharacteristics, pn:NaturalWoodSiding-OtherCharacteristics, pn:NaturalWoodSidingCharacteristics, pn:SoftwoodLumberCharacteristics
