Definition Type: Element
Name: QuoteRequestLineItem
Namespace: http://www.api.org/pidXML
Containing Schema: QuoteRequest.xsd
Abstract

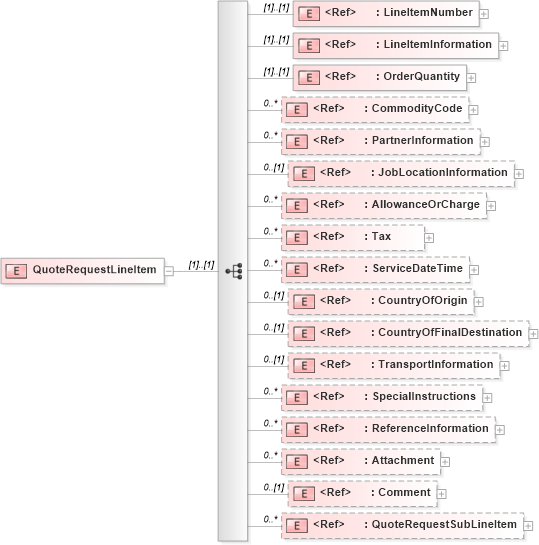

Collapse XSD Schema Diagram:
Drilldown into QuoteRequestSubLineItem in schema quoterequest_xsd Drilldown into Comment in schema pidxlib_xsd Drilldown into Attachment in schema pidxlib_xsd Drilldown into ReferenceInformation in schema pidxlib_xsd Drilldown into SpecialInstructions in schema pidxlib_xsd Drilldown into TransportInformation in schema pidxlib_xsd Drilldown into CountryOfFinalDestination in schema pidxlib_xsd Drilldown into CountryOfOrigin in schema pidxlib_xsd Drilldown into ServiceDateTime in schema pidxlib_xsd Drilldown into Tax in schema pidxlib_xsd Drilldown into AllowanceOrCharge in schema pidxlib_xsd Drilldown into JobLocationInformation in schema pidxlib_xsd Drilldown into PartnerInformation in schema pidxlib_xsd Drilldown into CommodityCode in schema pidxlib_xsd Drilldown into OrderQuantity in schema pidxlib_xsd Drilldown into LineItemInformation in schema pidxlib_xsd Drilldown into LineItemNumber in schema pidxlib_xsdXSD Diagram of QuoteRequestLineItem in schema quoterequest_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="QuoteRequestLineItem">
    <complexType>
        <sequence>
            <element ref="pidx:LineItemNumber" />
            <element ref="pidx:LineItemInformation" />
            <element ref="pidx:OrderQuantity" />
            <element ref="pidx:CommodityCode" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:PartnerInformation" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:JobLocationInformation" minOccurs="0" />
            <element ref="pidx:AllowanceOrCharge" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:Tax" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:ServiceDateTime" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:CountryOfOrigin" minOccurs="0" />
            <element ref="pidx:CountryOfFinalDestination" minOccurs="0" />
            <element ref="pidx:TransportInformation" minOccurs="0" />
            <element ref="pidx:SpecialInstructions" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:ReferenceInformation" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:Attachment" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:Comment" minOccurs="0" />
            <element ref="pidx:QuoteRequestSubLineItem" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineItemNumber pidx:LineItemNumber (1) (1)
LineItemInformation pidx:LineItemInformation (1) (1)
OrderQuantity pidx:OrderQuantity (1) (1)
CommodityCode pidx:CommodityCode 0 unbounded
PartnerInformation pidx:PartnerInformation 0 unbounded
JobLocationInformation pidx:JobLocationInformation 0 (1)
AllowanceOrCharge pidx:AllowanceOrCharge 0 unbounded
Tax pidx:Tax 0 unbounded
ServiceDateTime pidx:ServiceDateTime 0 unbounded
CountryOfOrigin pidx:CountryOfOrigin 0 (1)
CountryOfFinalDestination pidx:CountryOfFinalDestination 0 (1)
TransportInformation pidx:TransportInformation 0 (1)
SpecialInstructions pidx:SpecialInstructions 0 unbounded
ReferenceInformation pidx:ReferenceInformation 0 unbounded
Attachment pidx:Attachment 0 unbounded
Comment pidx:Comment 0 (1)
QuoteRequestSubLineItem pidx:QuoteRequestSubLineItem 0 unbounded
