Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: RequestRequisitionReturnLineItem
Namespace: http://www.api.org/pidXML
Containing Schema: RequestRequisitionReturn.xsd
Abstract

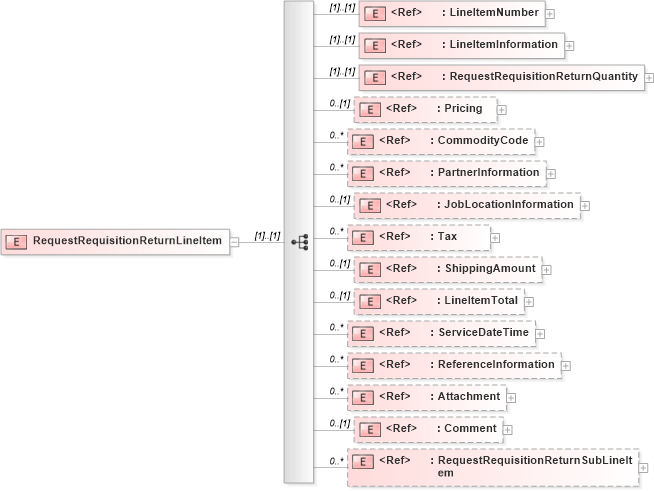

Collapse XSD Schema Diagram:
Drilldown into RequestRequisitionReturnSubLineItem in schema requestrequisitionreturn_xsd Drilldown into Comment in schema pidxlib_xsd Drilldown into Attachment in schema pidxlib_xsd Drilldown into ReferenceInformation in schema pidxlib_xsd Drilldown into ServiceDateTime in schema pidxlib_xsd Drilldown into LineItemTotal in schema pidxlib_xsd Drilldown into ShippingAmount in schema pidxlib_xsd Drilldown into Tax in schema pidxlib_xsd Drilldown into JobLocationInformation in schema pidxlib_xsd Drilldown into PartnerInformation in schema pidxlib_xsd Drilldown into CommodityCode in schema pidxlib_xsd Drilldown into Pricing in schema pidxlib_xsd Drilldown into RequestRequisitionReturnQuantity in schema pidxlib_xsd Drilldown into LineItemInformation in schema pidxlib_xsd Drilldown into LineItemNumber in schema pidxlib_xsdXSD Diagram of RequestRequisitionReturnLineItem in schema requestrequisitionreturn_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="RequestRequisitionReturnLineItem">
    <complexType>
        <sequence>
            <element ref="pidx:LineItemNumber" />
            <element ref="pidx:LineItemInformation" />
            <element ref="pidx:RequestRequisitionReturnQuantity" />
            <element ref="pidx:Pricing" minOccurs="0" />
            <element ref="pidx:CommodityCode" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:PartnerInformation" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:JobLocationInformation" minOccurs="0" />
            <element ref="pidx:Tax" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:ShippingAmount" minOccurs="0" />
            <element ref="pidx:LineItemTotal" minOccurs="0" />
            <element ref="pidx:ServiceDateTime" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:ReferenceInformation" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:Attachment" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:Comment" minOccurs="0" />
            <element ref="pidx:RequestRequisitionReturnSubLineItem" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineItemNumber pidx:LineItemNumber (1) (1)
LineItemInformation pidx:LineItemInformation (1) (1)
RequestRequisitionReturnQuantity pidx:RequestRequisitionReturnQuantity (1) (1)
Pricing pidx:Pricing 0 (1)
CommodityCode pidx:CommodityCode 0 unbounded
PartnerInformation pidx:PartnerInformation 0 unbounded
JobLocationInformation pidx:JobLocationInformation 0 (1)
Tax pidx:Tax 0 unbounded
ShippingAmount pidx:ShippingAmount 0 (1)
LineItemTotal pidx:LineItemTotal 0 (1)
ServiceDateTime pidx:ServiceDateTime 0 unbounded
ReferenceInformation pidx:ReferenceInformation 0 unbounded
Attachment pidx:Attachment 0 unbounded
Comment pidx:Comment 0 (1)
RequestRequisitionReturnSubLineItem pidx:RequestRequisitionReturnSubLineItem 0 unbounded
