Documentation for Chemical Markup Language (CML)
Definition Type: Element
Name: substanceList
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
A list of chemical substances. Deliberately very general - see substance. substanceList is designed to manage solutions, mixtures, etc. and there is a small enumerated controlled vocabulary, but this can be extended through dictionaries. substanceList can have an amount child. This can indicate the amount of a solution or mixture; this example describes 100 ml of 0.1M NaOH(aq). Although apparently longwinded it is precise and fully machine-interpretable Added role attribute, 2003-03-12.

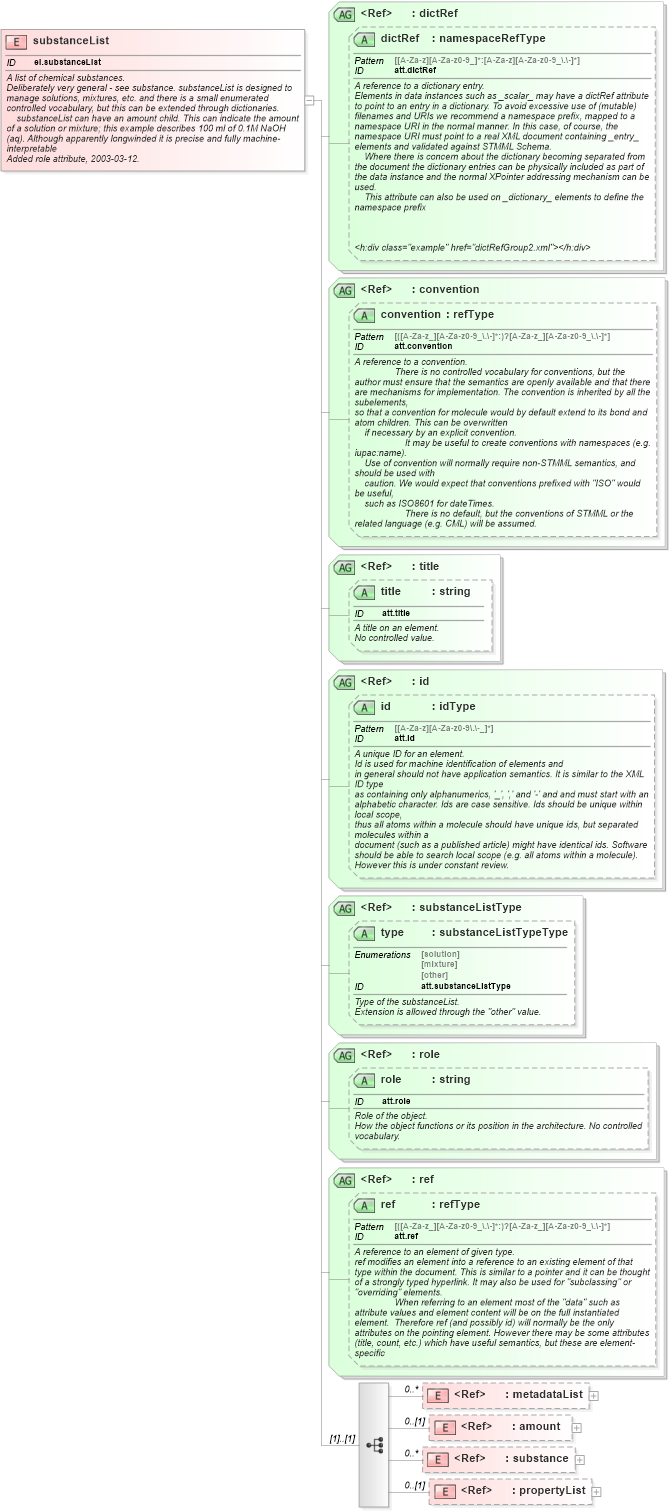

Collapse XSD Schema Diagram:
Drilldown into propertyList in schema schema_xsd Drilldown into substance in schema schema_xsd Drilldown into amount in schema schema_xsd Drilldown into metadataList in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into role in schema schema_xsd Drilldown into role in schema schema_xsd Drilldown into type in schema schema_xsd Drilldown into substanceListType in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsdXSD Diagram of substanceList in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="substanceList" id="el.substanceList">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A list of chemical substances.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">Deliberately very general - see substance. substanceList is designed to manage solutions, mixtures, etc. and there is a small enumerated controlled vocabulary, but this can be extended through dictionaries.
                <h:p>substanceList can have an amount child. This can indicate the amount of a solution or mixture; this example describes 100 ml of 0.1M NaOH(aq). Although apparently longwinded it is precise and fully machine-interpretable</h:p>
            </h:div>
            <h:div class="curation" xmlns:h="http://www.w3.org/1999/xhtml">Added role attribute, 2003-03-12.</h:div>
            <h:div class="example" href="substanceList1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="metadataList" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="amount" minOccurs="0" />
            <!--           <xsd:choice>-->
            <xsd:element ref="substance" minOccurs="0" maxOccurs="unbounded" />
            <!-- PMR 2003-01-26
              <xsd:sequence>
                <xsd:element ref="scalar" minOccurs="0" maxOccurs="unbounded"/>
                <xsd:element ref="array" minOccurs="0" maxOccurs="unbounded"/>
                <xsd:element ref="matrix" minOccurs="0" maxOccurs="unbounded"/>
                <xsd:element ref="list" minOccurs="0" maxOccurs="unbounded"/>
              </xsd:sequence>
-->
            <xsd:element ref="propertyList" minOccurs="0" />
            <!--            </xsd:choice>-->
        </xsd:sequence>
        <xsd:attributeGroup ref="dictRef" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="substanceListType" />
        <xsd:attributeGroup ref="role" />
        <xsd:attributeGroup ref="ref" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metadataList nsA:metadataList 0 unbounded
amount nsA:amount 0 (1)
substance nsA:substance 0 unbounded
propertyList nsA:propertyList 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
dictRef nsA:dictRef (Optional)
convention nsA:convention (Optional)
title nsA:title (Optional)
id nsA:id (Optional)
type nsA:type (Optional)
role nsA:role (Optional)
ref nsA:ref (Optional)
