Documentation for Chemical Markup Language (CML)
Definition Type: Element
Name: propertyList
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
A container for one or more properties. propertyList can contain several properties. These include (but are not limited to) observations, or numeric quantities.

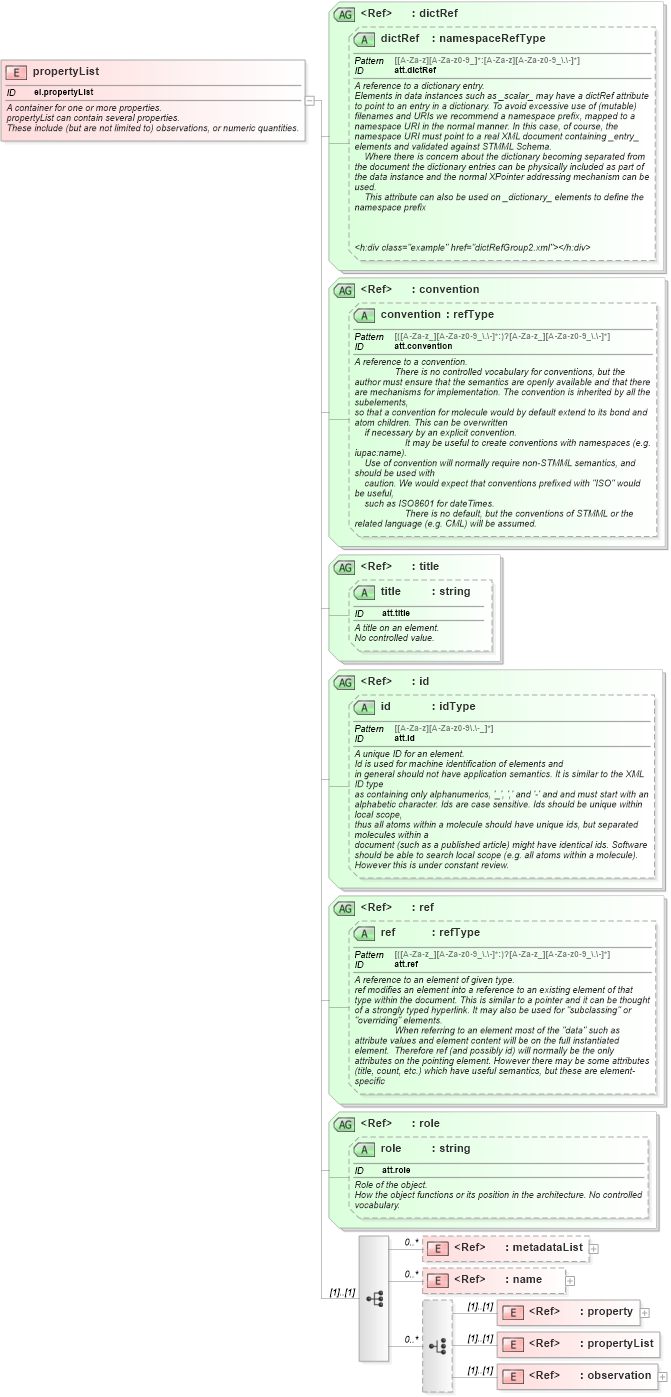

Collapse XSD Schema Diagram:
Drilldown into observation in schema schema_xsd Drilldown into propertyList in schema schema_xsd Drilldown into property in schema schema_xsd Drilldown into name in schema schema_xsd Drilldown into metadataList in schema schema_xsd Drilldown into role in schema schema_xsd Drilldown into role in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsdXSD Diagram of propertyList in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="propertyList" id="el.propertyList">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A container for one or more properties.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">
                <h:tt>propertyList</h:tt> can contain several properties.
            These include (but are not limited to) observations, or numeric quantities.</h:div>
            <h:div class="example" href="propertyList1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="metadataList" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="name" minOccurs="0" maxOccurs="unbounded" />
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element ref="property" />
                <xsd:element ref="propertyList" />
                <xsd:element ref="observation" />
            </xsd:choice>
            <!--      <xsd:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>-->
        </xsd:sequence>
        <xsd:attributeGroup ref="dictRef" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="ref" />
        <xsd:attributeGroup ref="role" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metadataList nsA:metadataList 0 unbounded
name nsA:name 0 unbounded
property nsA:property (1) (1)
propertyList nsA:propertyList (1) (1)
observation nsA:observation (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
dictRef nsA:dictRef (Optional)
convention nsA:convention (Optional)
title nsA:title (Optional)
id nsA:id (Optional)
ref nsA:ref (Optional)
role nsA:role (Optional)
Documentation for Chemical Markup Language (CML)

Generated using Liquid Studio - Developer Bundle 21.0.0.0
