Documentation for Chemical Markup Language (CML)
Definition Type: Element
Name: property
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
A container for a property. property can contain one or more children, usually scalar, array or matrix. The dictRef attribute is required, even if there is a single scalar child with the same dictRef. The property may have a different dictRef from the child, thus providing an extension mechanism. Properties may have a state attribute to distinguish the state of matter

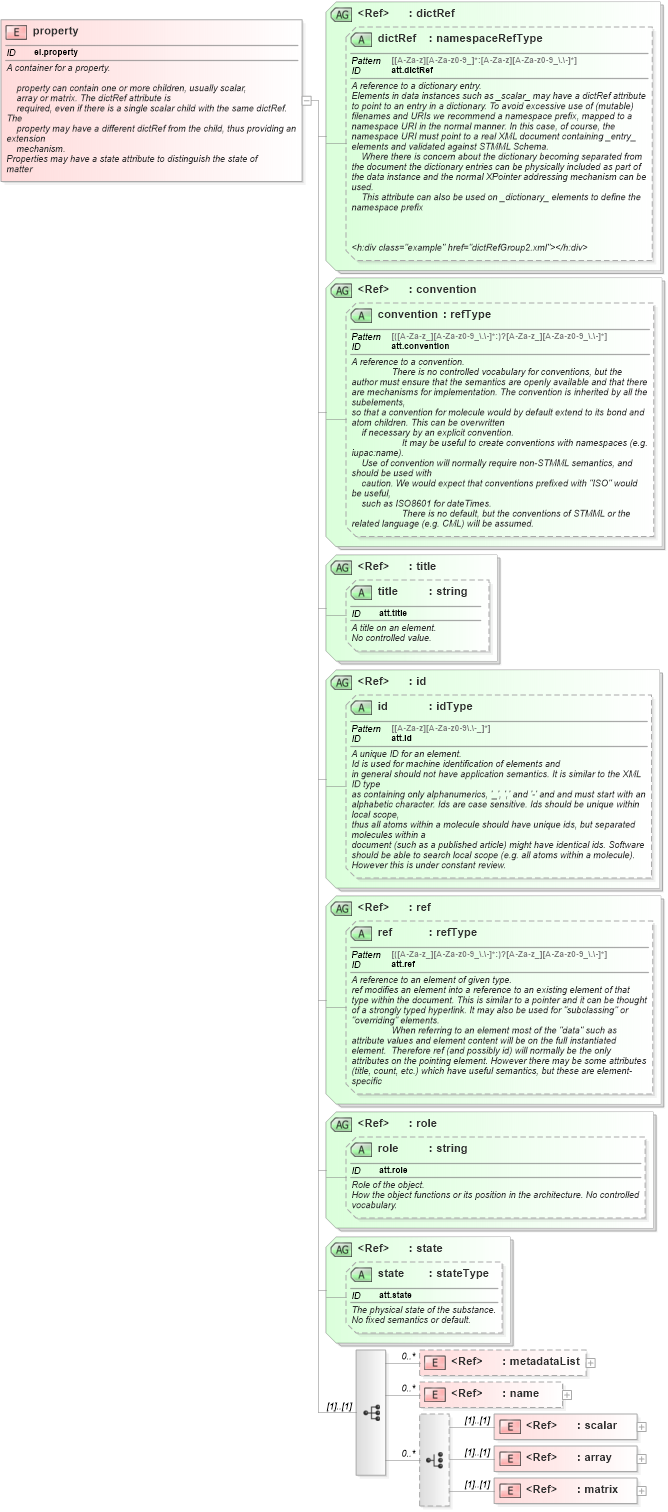

Collapse XSD Schema Diagram:
Drilldown into matrix in schema schema_xsd Drilldown into array in schema schema_xsd Drilldown into scalar in schema schema_xsd Drilldown into name in schema schema_xsd Drilldown into metadataList in schema schema_xsd Drilldown into state in schema schema_xsd Drilldown into state in schema schema_xsd Drilldown into role in schema schema_xsd Drilldown into role in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsdXSD Diagram of property in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="property" id="el.property">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A container for a property.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">
                <h:tt>property</h:tt> can contain one or more children, usually <h:tt>scalar</h:tt>,
                    <h:tt>array</h:tt> or <h:tt>matrix</h:tt>. The <h:tt>dictRef</h:tt> attribute is
                    required, even if there is a single scalar child with the same dictRef. The
                    property may have a different dictRef from the child, thus providing an extension
                    mechanism.
                <h:p>Properties may have a <h:tt>state</h:tt> attribute to distinguish the state of
                matter</h:p>
            </h:div>
            <h:div class="example" href="property1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="metadataList" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="name" minOccurs="0" maxOccurs="unbounded" />
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element ref="scalar" />
                <xsd:element ref="array" />
                <xsd:element ref="matrix" />
            </xsd:choice>
        </xsd:sequence>
        <xsd:attributeGroup ref="dictRef" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="ref" />
        <xsd:attributeGroup ref="role">
            <xsd:annotation>
                <xsd:documentation>
                    <h:div class="specific" xmlns:h="http://www.w3.org/1999/xhtml">Semantics are not yet controlled but could include
                    thermochemistry, kinetics or other common properties.</h:div>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:attributeGroup>
        <xsd:attributeGroup ref="state" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metadataList nsA:metadataList 0 unbounded
name nsA:name 0 unbounded
scalar nsA:scalar (1) (1)
array nsA:array (1) (1)
matrix nsA:matrix (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
dictRef nsA:dictRef (Optional)
convention nsA:convention (Optional)
title nsA:title (Optional)
id nsA:id (Optional)
ref nsA:ref (Optional)
role nsA:role (Optional)
state nsA:state (Optional)
