Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FixedPriceLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FinancialSwapLeg
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
Fixed Price Leg of a Commodity Swap. It defines schedule of fixed payments associated with a commodity swap.

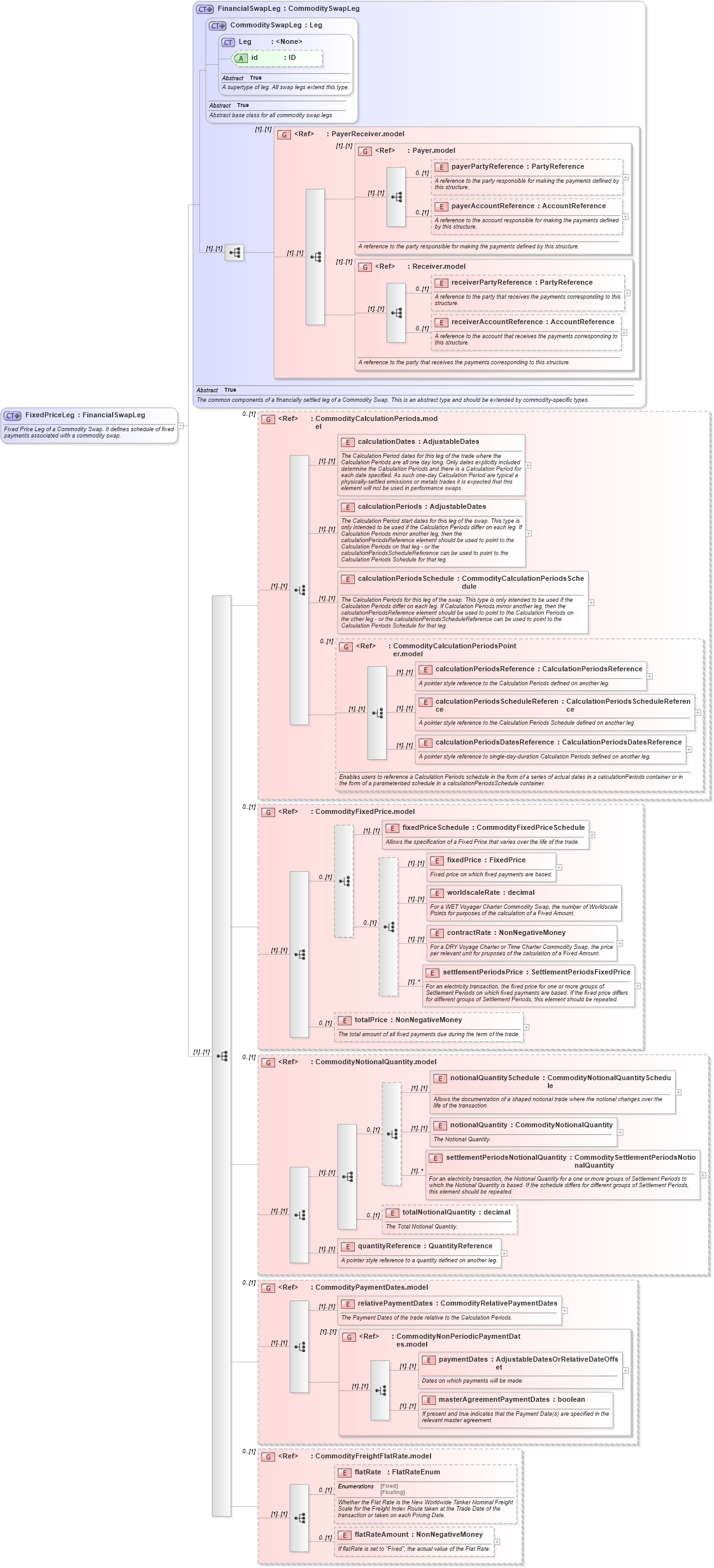

Collapse XSD Schema Diagram:
Drilldown into flatRateAmount in schema fpml-com-5-10_xsd2 Drilldown into flatRate in schema fpml-com-5-10_xsd2 Drilldown into CommodityFreightFlatRate.model in schema fpml-com-5-10_xsd2 Drilldown into masterAgreementPaymentDates in schema fpml-com-5-10_xsd2 Drilldown into paymentDates in schema fpml-com-5-10_xsd2 Drilldown into CommodityNonPeriodicPaymentDates.model in schema fpml-com-5-10_xsd2 Drilldown into relativePaymentDates in schema fpml-com-5-10_xsd2 Drilldown into CommodityPaymentDates.model in schema fpml-com-5-10_xsd2 Drilldown into quantityReference in schema fpml-com-5-10_xsd2 Drilldown into totalNotionalQuantity in schema fpml-com-5-10_xsd2 Drilldown into settlementPeriodsNotionalQuantity in schema fpml-com-5-10_xsd2 Drilldown into notionalQuantity in schema fpml-com-5-10_xsd2 Drilldown into notionalQuantitySchedule in schema fpml-com-5-10_xsd2 Drilldown into CommodityNotionalQuantity.model in schema fpml-com-5-10_xsd2 Drilldown into totalPrice in schema fpml-com-5-10_xsd2 Drilldown into settlementPeriodsPrice in schema fpml-com-5-10_xsd2 Drilldown into contractRate in schema fpml-com-5-10_xsd2 Drilldown into worldscaleRate in schema fpml-com-5-10_xsd2 Drilldown into fixedPrice in schema fpml-com-5-10_xsd2 Drilldown into fixedPriceSchedule in schema fpml-com-5-10_xsd2 Drilldown into CommodityFixedPrice.model in schema fpml-com-5-10_xsd2 Drilldown into calculationPeriodsDatesReference in schema fpml-com-5-10_xsd2 Drilldown into calculationPeriodsScheduleReference in schema fpml-com-5-10_xsd2 Drilldown into calculationPeriodsReference in schema fpml-com-5-10_xsd2 Drilldown into CommodityCalculationPeriodsPointer.model in schema fpml-com-5-10_xsd2 Drilldown into calculationPeriodsSchedule in schema fpml-com-5-10_xsd2 Drilldown into calculationPeriods in schema fpml-com-5-10_xsd2 Drilldown into calculationDates in schema fpml-com-5-10_xsd2 Drilldown into CommodityCalculationPeriods.model in schema fpml-com-5-10_xsd2 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd4 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Payer.model in schema fpml-shared-5-10_xsd4 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Leg in schema fpml-shared-5-10_xsd4 Drilldown into CommoditySwapLeg in schema fpml-com-5-10_xsd2 Drilldown into FinancialSwapLeg in schema fpml-com-5-10_xsd2XSD Diagram of FixedPriceLeg in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FixedPriceLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Fixed Price Leg of a Commodity Swap. It defines schedule of fixed payments associated with a commodity swap.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FinancialSwapLeg">
            <xsd:sequence>
                <xsd:group ref="CommodityCalculationPeriods.model" minOccurs="0">
                </xsd:group>
                <xsd:group ref="CommodityFixedPrice.model" minOccurs="0">
                </xsd:group>
                <xsd:group ref="CommodityNotionalQuantity.model" minOccurs="0">
                </xsd:group>
                <xsd:group ref="CommodityPaymentDates.model" minOccurs="0">
                </xsd:group>
                <xsd:group ref="CommodityFreightFlatRate.model" minOccurs="0">
                </xsd:group>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsE:payerPartyReference 0 (1)
payerAccountReference nsE:payerAccountReference 0 (1)
receiverPartyReference nsE:receiverPartyReference 0 (1)
receiverAccountReference nsE:receiverAccountReference 0 (1)
calculationDates nsE:calculationDates (1) (1)
calculationPeriods nsE:calculationPeriods (1) (1)
calculationPeriodsSchedule nsE:calculationPeriodsSchedule (1) (1)
calculationPeriodsReference nsE:calculationPeriodsReference (1) (1)
calculationPeriodsScheduleReference nsE:calculationPeriodsScheduleReference (1) (1)
calculationPeriodsDatesReference nsE:calculationPeriodsDatesReference (1) (1)
fixedPriceSchedule nsE:fixedPriceSchedule (1) (1)
fixedPrice nsE:fixedPrice (1) (1)
worldscaleRate nsE:worldscaleRate (1) (1)
contractRate nsE:contractRate (1) (1)
settlementPeriodsPrice nsE:settlementPeriodsPrice (1) unbounded
totalPrice nsE:totalPrice 0 (1)
notionalQuantitySchedule nsE:notionalQuantitySchedule (1) (1)
notionalQuantity nsE:notionalQuantity (1) (1)
settlementPeriodsNotionalQuantity nsE:settlementPeriodsNotionalQuantity (1) unbounded
totalNotionalQuantity nsE:totalNotionalQuantity 0 (1)
quantityReference nsE:quantityReference (1) (1)
relativePaymentDates nsE:relativePaymentDates (1) (1)
paymentDates nsE:paymentDates (1) (1)
masterAgreementPaymentDates nsE:masterAgreementPaymentDates (1) (1)
flatRate nsE:flatRate 0 (1)
flatRateAmount nsE:flatRateAmount 0 (1)
<xs:group> nsE:PayerReceiver.model (1) (1)
<xs:group> nsE:Payer.model (1) (1)
<xs:group> nsE:Receiver.model (1) (1)
<xs:group> nsE:CommodityCalculationPeriods.model 0 (1)
<xs:group> nsE:CommodityCalculationPeriodsPointer.model 0 (1)
<xs:group> nsE:CommodityFixedPrice.model 0 (1)
<xs:group> nsE:CommodityNotionalQuantity.model 0 (1)
<xs:group> nsE:CommodityPaymentDates.model 0 (1)
<xs:group> nsE:CommodityNonPeriodicPaymentDates.model (1) (1)
<xs:group> nsE:CommodityFreightFlatRate.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:fixedLeg
