Definition Type: Element
Name: ShipmentUnit
Namespace: http://www.openapplications.org/oagis/9
Type: oa:ShipmentUnitType
Containing Schema: LogisticsComponents.xsd
Abstract
Documentation:
The ShipmentUnit represents a single trackable, uniquely identifiable assembly or container containing a specific collection of goods inventory that is packaged by a supplier for carrier transportation to a customer business partner destination The ShipmentUnit component identifies and describes the physical shipping container(s) and internal packaging structure of the delivered goods. The ShipmentUnit component is typically constructed to describe the result of an inventory picking and packing operation. A ShipmentUnit is generally the smallest "thing" that can be individually moved and tracked throughout a carrier's transportation network. The physical size, inventory, content and internal nested container complexity within a ShipUnit is arbitrary. The ShipUnit component was specifically designed to be transportation mode independent. It may be used to represent any uniquely identifiable and trackable assembly, container or vessel including, but not limited to: a parcel express package; a pallet of identical or mixed items; a truck trailer, rail car or an ocean cargo container. The ShipmentUnit complements the line-item oriented summary information provided in the Shipment's ShipmentItem and InventoryDetail component with detailed information to accurately describe complex shipping unit assemblies and item packaging.

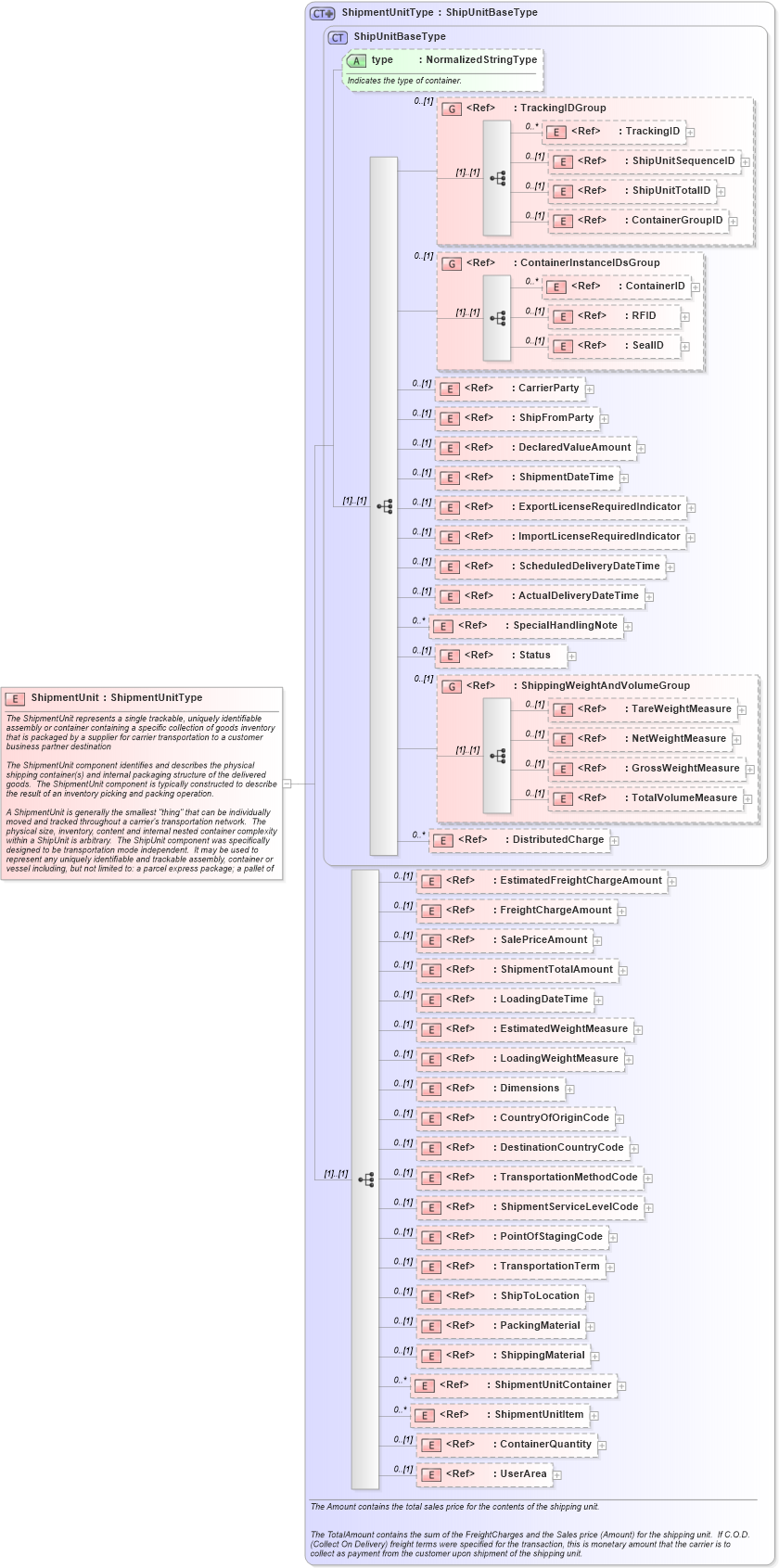

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into ContainerQuantity in schema fields_xsd1 Drilldown into ShipmentUnitItem in schema logisticscomponents_xsd Drilldown into ShipmentUnitContainer in schema logisticscomponents_xsd Drilldown into ShippingMaterial in schema components_xsd1 Drilldown into PackingMaterial in schema components_xsd1 Drilldown into ShipToLocation in schema components_xsd1 Drilldown into TransportationTerm in schema components_xsd1 Drilldown into PointOfStagingCode in schema fields_xsd1 Drilldown into ShipmentServiceLevelCode in schema fields_xsd1 Drilldown into TransportationMethodCode in schema fields_xsd1 Drilldown into DestinationCountryCode in schema fields_xsd1 Drilldown into CountryOfOriginCode in schema fields_xsd1 Drilldown into Dimensions in schema components_xsd1 Drilldown into LoadingWeightMeasure in schema fields_xsd1 Drilldown into EstimatedWeightMeasure in schema fields_xsd1 Drilldown into LoadingDateTime in schema fields_xsd1 Drilldown into ShipmentTotalAmount in schema fields_xsd1 Drilldown into SalePriceAmount in schema fields_xsd1 Drilldown into FreightChargeAmount in schema fields_xsd1 Drilldown into EstimatedFreightChargeAmount in schema fields_xsd1 Drilldown into DistributedCharge in schema components_xsd1 Drilldown into TotalVolumeMeasure in schema fields_xsd1 Drilldown into GrossWeightMeasure in schema fields_xsd1 Drilldown into NetWeightMeasure in schema fields_xsd1 Drilldown into TareWeightMeasure in schema fields_xsd1 Drilldown into ShippingWeightAndVolumeGroup in schema components_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into SpecialHandlingNote in schema fields_xsd1 Drilldown into ActualDeliveryDateTime in schema fields_xsd1 Drilldown into ScheduledDeliveryDateTime in schema fields_xsd1 Drilldown into ImportLicenseRequiredIndicator in schema fields_xsd1 Drilldown into ExportLicenseRequiredIndicator in schema fields_xsd1 Drilldown into ShipmentDateTime in schema fields_xsd1 Drilldown into DeclaredValueAmount in schema fields_xsd1 Drilldown into ShipFromParty in schema components_xsd1 Drilldown into CarrierParty in schema components_xsd1 Drilldown into SealID in schema fields_xsd1 Drilldown into RFID in schema fields_xsd1 Drilldown into ContainerID in schema fields_xsd1 Drilldown into ContainerInstanceIDsGroup in schema logisticscomponents_xsd Drilldown into ContainerGroupID in schema fields_xsd1 Drilldown into ShipUnitTotalID in schema fields_xsd1 Drilldown into ShipUnitSequenceID in schema fields_xsd1 Drilldown into TrackingID in schema fields_xsd1 Drilldown into TrackingIDGroup in schema logisticscomponents_xsd Drilldown into type in schema logisticscomponents_xsd Drilldown into ShipUnitBaseType in schema logisticscomponents_xsd Drilldown into ShipmentUnitType in schema logisticscomponents_xsdXSD Diagram of ShipmentUnit in schema logisticscomponents_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ShipmentUnit" type="ShipmentUnitType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">The ShipmentUnit represents a single trackable, uniquely identifiable assembly or container containing a specific collection of goods inventory that is packaged by a supplier for carrier transportation to a customer business partner destination

The ShipmentUnit component identifies and describes the physical shipping container(s) and internal packaging structure of the delivered goods.  The ShipmentUnit component is typically constructed to describe the result of an inventory picking and packing operation.

A ShipmentUnit is generally the smallest "thing" that can be individually moved and tracked throughout a carrier's transportation network.  The physical size, inventory, content and internal nested container complexity within a ShipUnit is arbitrary.  The ShipUnit component was specifically designed to be transportation mode independent.  It may be used to represent any uniquely identifiable and trackable assembly, container or vessel including, but not limited to: a parcel express package; a pallet of identical or mixed items; a truck trailer, rail car or an ocean cargo container.

The ShipmentUnit complements the line-item oriented summary information provided in the Shipment's ShipmentItem and InventoryDetail component with detailed information to accurately describe complex shipping unit assemblies and item packaging.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TrackingID oa:TrackingID 0 unbounded
ShipUnitSequenceID oa:ShipUnitSequenceID 0 (1)
ShipUnitTotalID oa:ShipUnitTotalID 0 (1)
ContainerGroupID oa:ContainerGroupID 0 (1)
ContainerID oa:ContainerID 0 unbounded
RFID oa:RFID 0 (1)
SealID oa:SealID 0 (1)
CarrierParty oa:CarrierParty 0 (1)
ShipFromParty oa:ShipFromParty 0 (1)
DeclaredValueAmount oa:DeclaredValueAmount 0 (1)
ShipmentDateTime oa:ShipmentDateTime 0 (1)
ExportLicenseRequiredIndicator oa:ExportLicenseRequiredIndicator 0 (1)
ImportLicenseRequiredIndicator oa:ImportLicenseRequiredIndicator 0 (1)
ScheduledDeliveryDateTime oa:ScheduledDeliveryDateTime 0 (1)
ActualDeliveryDateTime oa:ActualDeliveryDateTime 0 (1)
SpecialHandlingNote oa:SpecialHandlingNote 0 unbounded
Status oa:Status 0 (1)
TareWeightMeasure oa:TareWeightMeasure 0 (1)
NetWeightMeasure oa:NetWeightMeasure 0 (1)
GrossWeightMeasure oa:GrossWeightMeasure 0 (1)
TotalVolumeMeasure oa:TotalVolumeMeasure 0 (1)
DistributedCharge oa:DistributedCharge 0 unbounded
EstimatedFreightChargeAmount oa:EstimatedFreightChargeAmount 0 (1)
FreightChargeAmount oa:FreightChargeAmount 0 (1)
SalePriceAmount oa:SalePriceAmount 0 (1)
ShipmentTotalAmount oa:ShipmentTotalAmount 0 (1)
LoadingDateTime oa:LoadingDateTime 0 (1)
EstimatedWeightMeasure oa:EstimatedWeightMeasure 0 (1)
LoadingWeightMeasure oa:LoadingWeightMeasure 0 (1)
Dimensions oa:Dimensions 0 (1)
CountryOfOriginCode oa:CountryOfOriginCode 0 (1)
DestinationCountryCode oa:DestinationCountryCode 0 (1)
TransportationMethodCode oa:TransportationMethodCode 0 (1)
ShipmentServiceLevelCode oa:ShipmentServiceLevelCode 0 (1)
PointOfStagingCode oa:PointOfStagingCode 0 (1)
TransportationTerm oa:TransportationTerm 0 (1)
ShipToLocation oa:ShipToLocation 0 (1)
PackingMaterial oa:PackingMaterial 0 (1)
ShippingMaterial oa:ShippingMaterial 0 (1)
ShipmentUnitContainer oa:ShipmentUnitContainer 0 unbounded
ShipmentUnitItem oa:ShipmentUnitItem 0 unbounded
ContainerQuantity oa:ContainerQuantity 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:TrackingIDGroup 0 (1)
<xs:group> oa:ContainerInstanceIDsGroup 0 (1)
<xs:group> oa:ShippingWeightAndVolumeGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type oa:type (Optional)
Collapse Derivation Tree:
