Definition Type: Element
Name: DespatchAdvice
Namespace: urn:oasis:names:specification:ubl:schema:xsd:DespatchAdvice-1.0
Type: nsA:DespatchAdviceType
Containing Schema: UBL-DespatchAdvice-1.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

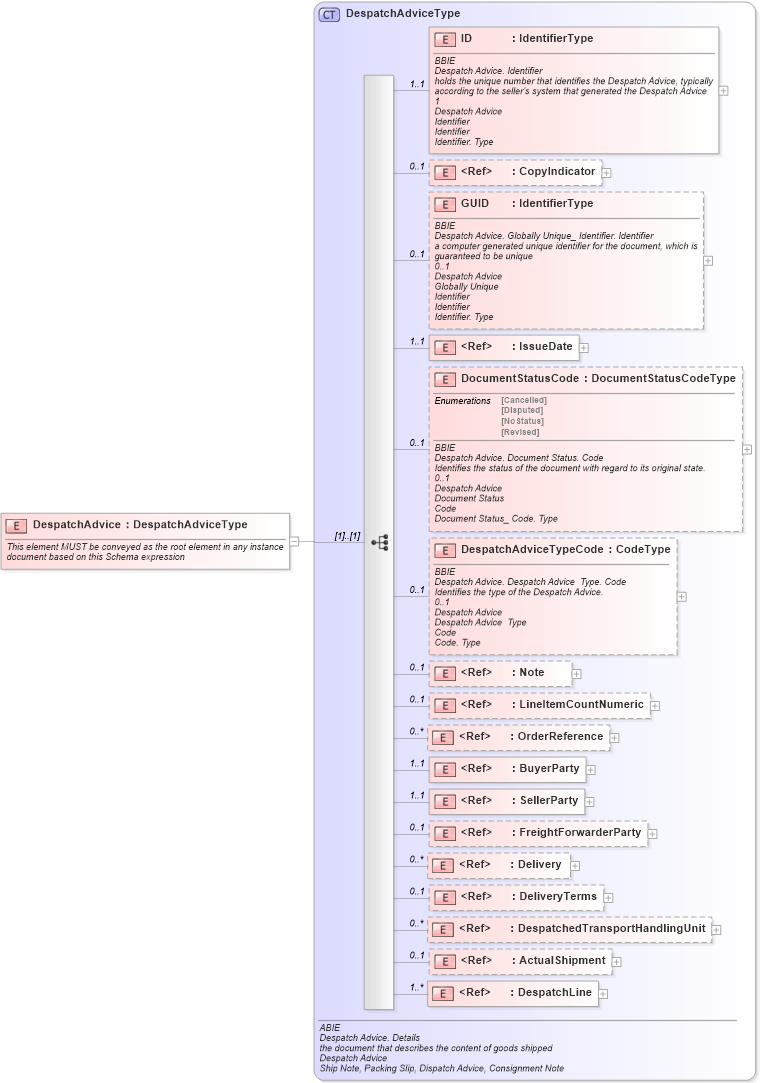

Collapse XSD Schema Diagram:
Drilldown into DespatchLine in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ActualShipment in schema ubl-despatchadvice-1_0_xsd Drilldown into DespatchedTransportHandlingUnit in schema ubl-despatchadvice-1_0_xsd Drilldown into DeliveryTerms in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into FreightForwarderParty in schema ubl-despatchadvice-1_0_xsd Drilldown into SellerParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BuyerParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OrderReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into LineItemCountNumeric in schema ubl-despatchadvice-1_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into DespatchAdviceTypeCode in schema ubl-despatchadvice-1_0_xsd Drilldown into DocumentStatusCode in schema ubl-despatchadvice-1_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into GUID in schema ubl-despatchadvice-1_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ID in schema ubl-despatchadvice-1_0_xsd Drilldown into DespatchAdviceType in schema ubl-despatchadvice-1_0_xsdXSD Diagram of DespatchAdvice in schema ubl-despatchadvice-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="DespatchAdvice" type="DespatchAdviceType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
GUID nsA:GUID 0 1
IssueDate cbc:IssueDate 1 1
DocumentStatusCode nsA:DocumentStatusCode 0 1
DespatchAdviceTypeCode nsA:DespatchAdviceTypeCode 0 1
Note cbc:Note 0 1
LineItemCountNumeric nsA:LineItemCountNumeric 0 1
OrderReference cac:OrderReference 0 unbounded
BuyerParty cac:BuyerParty 1 1
SellerParty cac:SellerParty 1 1
FreightForwarderParty nsA:FreightForwarderParty 0 1
Delivery cac:Delivery 0 unbounded
DeliveryTerms cac:DeliveryTerms 0 1
DespatchedTransportHandlingUnit nsA:DespatchedTransportHandlingUnit 0 unbounded
ActualShipment nsA:ActualShipment 0 1
DespatchLine cac:DespatchLine 1 unbounded
Collapse Derivation Tree:
