Definition Type: Element
Name: DespatchLine
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: cac:DespatchLineType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract

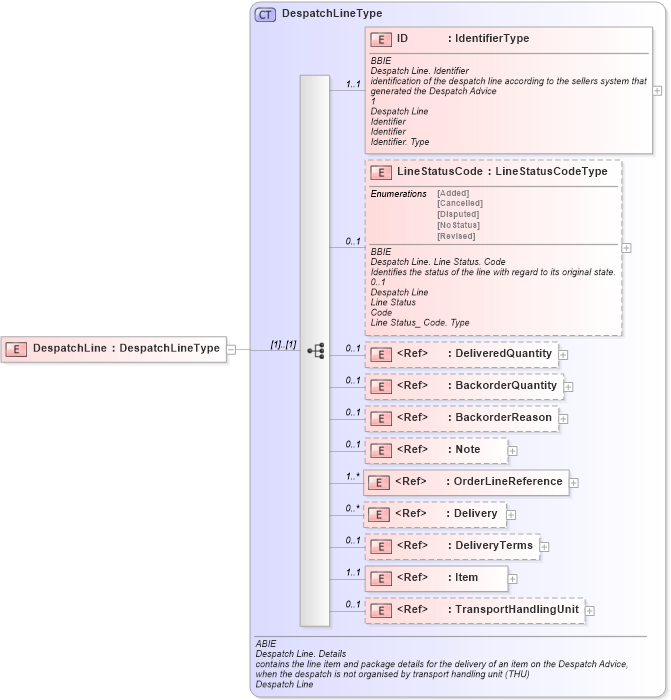

Collapse XSD Schema Diagram:
Drilldown into TransportHandlingUnit in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Item in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into DeliveryTerms in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OrderLineReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into BackorderReason in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into BackorderQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into DeliveredQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into LineStatusCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into DespatchLineType in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of DespatchLine in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="DespatchLine" type="DespatchLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 1 1
LineStatusCode cac:LineStatusCode 0 1
DeliveredQuantity cbc:DeliveredQuantity 0 1
BackorderQuantity cbc:BackorderQuantity 0 1
BackorderReason cbc:BackorderReason 0 1
Note cbc:Note 0 1
OrderLineReference cac:OrderLineReference 1 unbounded
Delivery cac:Delivery 0 unbounded
DeliveryTerms cac:DeliveryTerms 0 1
Item cac:Item 1 1
TransportHandlingUnit cac:TransportHandlingUnit 0 1
Collapse Derivation Tree:
