Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: DespatchLineType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Despatch Line. Details contains the line item and package details for the delivery of an item on the Despatch Advice, when the despatch is not organised by transport handling unit (THU) Despatch Line

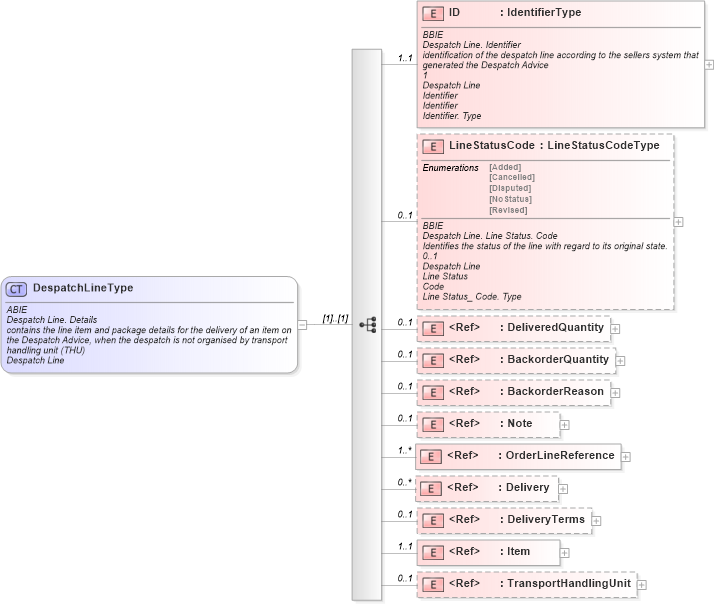

Collapse XSD Schema Diagram:
Drilldown into TransportHandlingUnit in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Item in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into DeliveryTerms in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OrderLineReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into BackorderReason in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into BackorderQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into DeliveredQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into LineStatusCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of DespatchLineType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="DespatchLineType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Despatch Line. Details</ccts:DictionaryEntryName>
                <ccts:Definition>contains the line item and package details for the delivery of an item on the Despatch Advice, when the despatch is not organised by transport handling unit (THU)</ccts:Definition>
                <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identification of the despatch line according to the sellers system that generated the Despatch Advice</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LineStatusCode" type="lstat:LineStatusCodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Line Status. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the status of the line with regard to its original state.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Line Status</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Line Status_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DeliveredQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Delivered_ Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>the quantity of the item advised as despatched on this line item.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Delivered</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:BackorderQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Backorder_ Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>the quantity of the item that was not despatched and which will follow in a subsequent despatch, without any further action by the buyer/recipient.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Backorder</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:BackorderReason" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Backorder_ Reason. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>the reason why the seller was unable to supply the full scheduled quantity against this despatch line.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Backorder</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Reason</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Note" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>contains any free form text pertinent to the line of the document. This element may contain notes or any other similar information that is not contained explicitly in another structure.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OrderLineReference" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Order Line Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the despatch line with one or more orders/order lines</ccts:Definition>
                        <ccts:Cardinality>1..n</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Order Line Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Order Line Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Delivery" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Delivery</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the line with details of a delivery (or deliveries)</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Delivery</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Delivery</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DeliveryTerms" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Delivery Terms</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the despatch line with the terms agreed between seller and buyer with regard to the delivery of goods.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Delivery Terms</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Delivery Terms</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Item" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Item</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the despatch line with information directly relating to an item (article, product, goods item or service).</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Item</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TransportHandlingUnit" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Line. Transport Handling Unit</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the despatch line with the transport handling unit.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transport Handling Unit</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Transport Handling Unit</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 1 1
LineStatusCode cac:LineStatusCode 0 1
DeliveredQuantity cbc:DeliveredQuantity 0 1
BackorderQuantity cbc:BackorderQuantity 0 1
BackorderReason cbc:BackorderReason 0 1
Note cbc:Note 0 1
OrderLineReference cac:OrderLineReference 1 unbounded
Delivery cac:Delivery 0 unbounded
DeliveryTerms cac:DeliveryTerms 0 1
Item cac:Item 1 1
TransportHandlingUnit cac:TransportHandlingUnit 0 1
Collapse Derivation Tree:
Collapse References:
cac:DespatchLine, cac:HandlingUnitDespatchLine
