Definition Type: Element
Name: OrderResponse
Namespace: urn:oasis:names:specification:ubl:schema:xsd:OrderResponse-1.0
Type: nsF:OrderResponseType
Containing Schema: UBL-OrderResponse-1.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

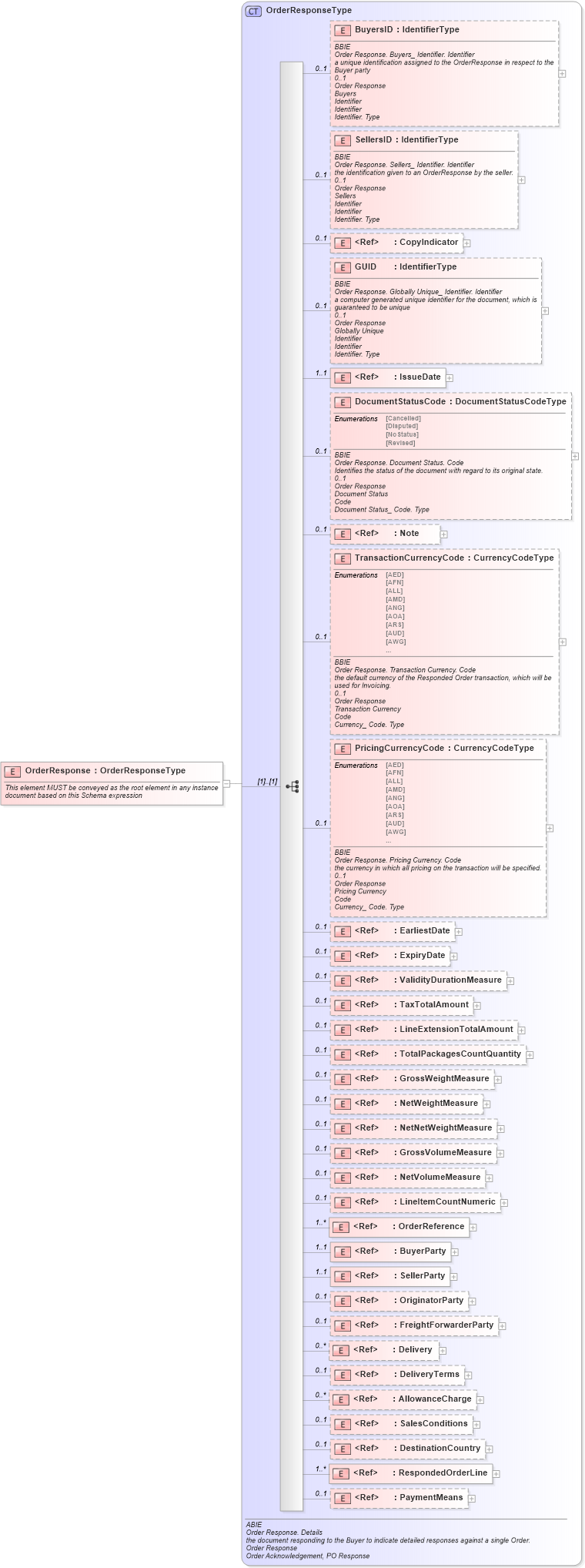

Collapse XSD Schema Diagram:
Drilldown into PaymentMeans in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into RespondedOrderLine in schema ubl-orderresponse-1_0_xsd Drilldown into DestinationCountry in schema ubl-orderresponse-1_0_xsd Drilldown into SalesConditions in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into AllowanceCharge in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into DeliveryTerms in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into FreightForwarderParty in schema ubl-orderresponse-1_0_xsd Drilldown into OriginatorParty in schema ubl-orderresponse-1_0_xsd Drilldown into SellerParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BuyerParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OrderReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into LineItemCountNumeric in schema ubl-orderresponse-1_0_xsd Drilldown into NetVolumeMeasure in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into GrossVolumeMeasure in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into NetNetWeightMeasure in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into NetWeightMeasure in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into GrossWeightMeasure in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into TotalPackagesCountQuantity in schema ubl-orderresponse-1_0_xsd Drilldown into LineExtensionTotalAmount in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into TaxTotalAmount in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ValidityDurationMeasure in schema ubl-orderresponse-1_0_xsd Drilldown into ExpiryDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into EarliestDate in schema ubl-orderresponse-1_0_xsd Drilldown into PricingCurrencyCode in schema ubl-orderresponse-1_0_xsd Drilldown into TransactionCurrencyCode in schema ubl-orderresponse-1_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into DocumentStatusCode in schema ubl-orderresponse-1_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into GUID in schema ubl-orderresponse-1_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into SellersID in schema ubl-orderresponse-1_0_xsd Drilldown into BuyersID in schema ubl-orderresponse-1_0_xsd Drilldown into OrderResponseType in schema ubl-orderresponse-1_0_xsdXSD Diagram of OrderResponse in schema ubl-orderresponse-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="OrderResponse" type="OrderResponseType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BuyersID nsF:BuyersID 0 1
SellersID nsF:SellersID 0 1
CopyIndicator cbc:CopyIndicator 0 1
GUID nsF:GUID 0 1
IssueDate cbc:IssueDate 1 1
DocumentStatusCode nsF:DocumentStatusCode 0 1
Note cbc:Note 0 1
TransactionCurrencyCode nsF:TransactionCurrencyCode 0 1
PricingCurrencyCode nsF:PricingCurrencyCode 0 1
EarliestDate nsF:EarliestDate 0 1
ExpiryDate cbc:ExpiryDate 0 1
ValidityDurationMeasure nsF:ValidityDurationMeasure 0 1
TaxTotalAmount cbc:TaxTotalAmount 0 1
LineExtensionTotalAmount cbc:LineExtensionTotalAmount 0 1
TotalPackagesCountQuantity nsF:TotalPackagesCountQuantity 0 1
GrossWeightMeasure cbc:GrossWeightMeasure 0 1
NetWeightMeasure cbc:NetWeightMeasure 0 1
NetNetWeightMeasure cbc:NetNetWeightMeasure 0 1
GrossVolumeMeasure cbc:GrossVolumeMeasure 0 1
NetVolumeMeasure cbc:NetVolumeMeasure 0 1
LineItemCountNumeric nsF:LineItemCountNumeric 0 1
OrderReference cac:OrderReference 1 unbounded
BuyerParty cac:BuyerParty 1 1
SellerParty cac:SellerParty 1 1
OriginatorParty nsF:OriginatorParty 0 1
FreightForwarderParty nsF:FreightForwarderParty 0 1
Delivery cac:Delivery 0 unbounded
DeliveryTerms cac:DeliveryTerms 0 1
AllowanceCharge cac:AllowanceCharge 0 unbounded
SalesConditions cac:SalesConditions 0 1
DestinationCountry nsF:DestinationCountry 0 1
RespondedOrderLine nsF:RespondedOrderLine 1 unbounded
PaymentMeans cac:PaymentMeans 0 1
Collapse Derivation Tree:
