Definition Type: Element
Name: Shape
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:Shape_Type
Containing Schema: visio.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

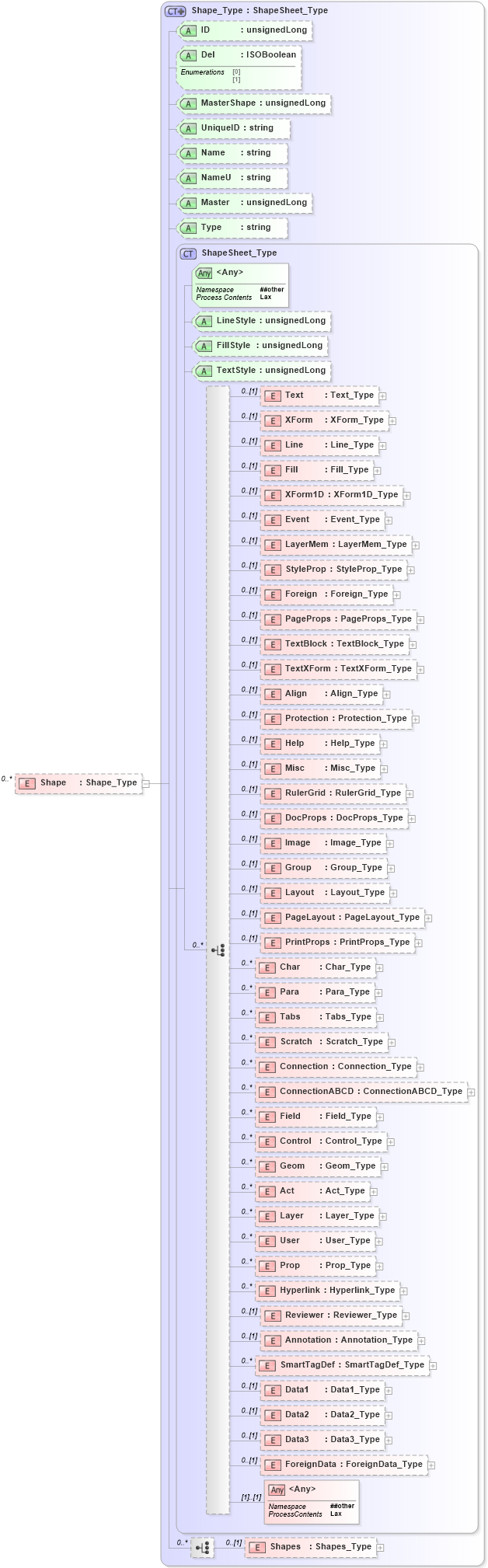

Collapse XSD Schema Diagram:
Drilldown into Shapes in schema visio_xsd Drilldown into ForeignData in schema visio_xsd Drilldown into Data3 in schema visio_xsd Drilldown into Data2 in schema visio_xsd Drilldown into Data1 in schema visio_xsd Drilldown into SmartTagDef in schema visio_xsd Drilldown into Annotation in schema visio_xsd Drilldown into Reviewer in schema visio_xsd Drilldown into Hyperlink in schema visio_xsd Drilldown into Prop in schema visio_xsd Drilldown into User in schema visio_xsd Drilldown into Layer in schema visio_xsd Drilldown into Act in schema visio_xsd Drilldown into Geom in schema visio_xsd Drilldown into Control in schema visio_xsd Drilldown into Field in schema visio_xsd Drilldown into ConnectionABCD in schema visio_xsd Drilldown into Connection in schema visio_xsd Drilldown into Scratch in schema visio_xsd Drilldown into Tabs in schema visio_xsd Drilldown into Para in schema visio_xsd Drilldown into Char in schema visio_xsd Drilldown into PrintProps in schema visio_xsd Drilldown into PageLayout in schema visio_xsd Drilldown into Layout in schema visio_xsd Drilldown into Group in schema visio_xsd Drilldown into Image in schema visio_xsd Drilldown into DocProps in schema visio_xsd Drilldown into RulerGrid in schema visio_xsd Drilldown into Misc in schema visio_xsd Drilldown into Help in schema visio_xsd Drilldown into Protection in schema visio_xsd Drilldown into Align in schema visio_xsd Drilldown into TextXForm in schema visio_xsd Drilldown into TextBlock in schema visio_xsd Drilldown into PageProps in schema visio_xsd Drilldown into Foreign in schema visio_xsd Drilldown into StyleProp in schema visio_xsd Drilldown into LayerMem in schema visio_xsd Drilldown into Event in schema visio_xsd Drilldown into XForm1D in schema visio_xsd Drilldown into Fill in schema visio_xsd Drilldown into Line in schema visio_xsd Drilldown into XForm in schema visio_xsd Drilldown into Text in schema visio_xsd Drilldown into TextStyle in schema visio_xsd Drilldown into FillStyle in schema visio_xsd Drilldown into LineStyle in schema visio_xsd Drilldown into ShapeSheet_Type in schema visio_xsd Drilldown into Type in schema visio_xsd Drilldown into Master in schema visio_xsd Drilldown into NameU in schema visio_xsd Drilldown into Name in schema visio_xsd Drilldown into UniqueID in schema visio_xsd Drilldown into MasterShape in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into ID in schema visio_xsd Drilldown into Shape_Type in schema visio_xsdXSD Diagram of Shape in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="Shape" type="Shape_Type" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Text nsA:Text 0 (1)
XForm nsA:XForm 0 (1)
Line nsA:Line 0 (1)
Fill nsA:Fill 0 (1)
XForm1D nsA:XForm1D 0 (1)
Event nsA:Event 0 (1)
LayerMem nsA:LayerMem 0 (1)
StyleProp nsA:StyleProp 0 (1)
Foreign nsA:Foreign 0 (1)
PageProps nsA:PageProps 0 (1)
TextBlock nsA:TextBlock 0 (1)
TextXForm nsA:TextXForm 0 (1)
Align nsA:Align 0 (1)
Protection nsA:Protection 0 (1)
Help nsA:Help 0 (1)
Misc nsA:Misc 0 (1)
RulerGrid nsA:RulerGrid 0 (1)
DocProps nsA:DocProps 0 (1)
Image nsA:Image 0 (1)
Group nsA:Group 0 (1)
Layout nsA:Layout 0 (1)
PageLayout nsA:PageLayout 0 (1)
PrintProps nsA:PrintProps 0 (1)
Char nsA:Char 0 unbounded
Para nsA:Para 0 unbounded
Tabs nsA:Tabs 0 unbounded
Scratch nsA:Scratch 0 unbounded
Connection nsA:Connection 0 unbounded
ConnectionABCD nsA:ConnectionABCD 0 unbounded
Field nsA:Field 0 unbounded
Control nsA:Control 0 unbounded
Geom nsA:Geom 0 unbounded
Act nsA:Act 0 unbounded
Layer nsA:Layer 0 unbounded
User nsA:User 0 unbounded
Prop nsA:Prop 0 unbounded
Hyperlink nsA:Hyperlink 0 unbounded
Reviewer nsA:Reviewer 0 (1)
Annotation nsA:Annotation 0 (1)
SmartTagDef nsA:SmartTagDef 0 unbounded
Data1 nsA:Data1 0 (1)
Data2 nsA:Data2 0 (1)
Data3 nsA:Data3 0 (1)
ForeignData nsA:ForeignData 0 (1)
Shapes nsA:Shapes 0 (1)
<xs:any> Allowed namespace: '##other' (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
LineStyle nsA:LineStyle (Optional)
FillStyle nsA:FillStyle (Optional)
TextStyle nsA:TextStyle (Optional)
ID nsA:ID (Optional)
Del nsA:Del (Optional)
MasterShape nsA:MasterShape (Optional)
UniqueID nsA:UniqueID (Optional)
Name nsA:Name (Optional)
NameU nsA:NameU (Optional)
Master nsA:Master (Optional)
Type nsA:Type (Optional)
<anyAttribute> Allowed namespace: '##other'
