Definition Type: ComplexType
Name: ShapeSheet_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Containing Schema: visio.xsd
Abstract

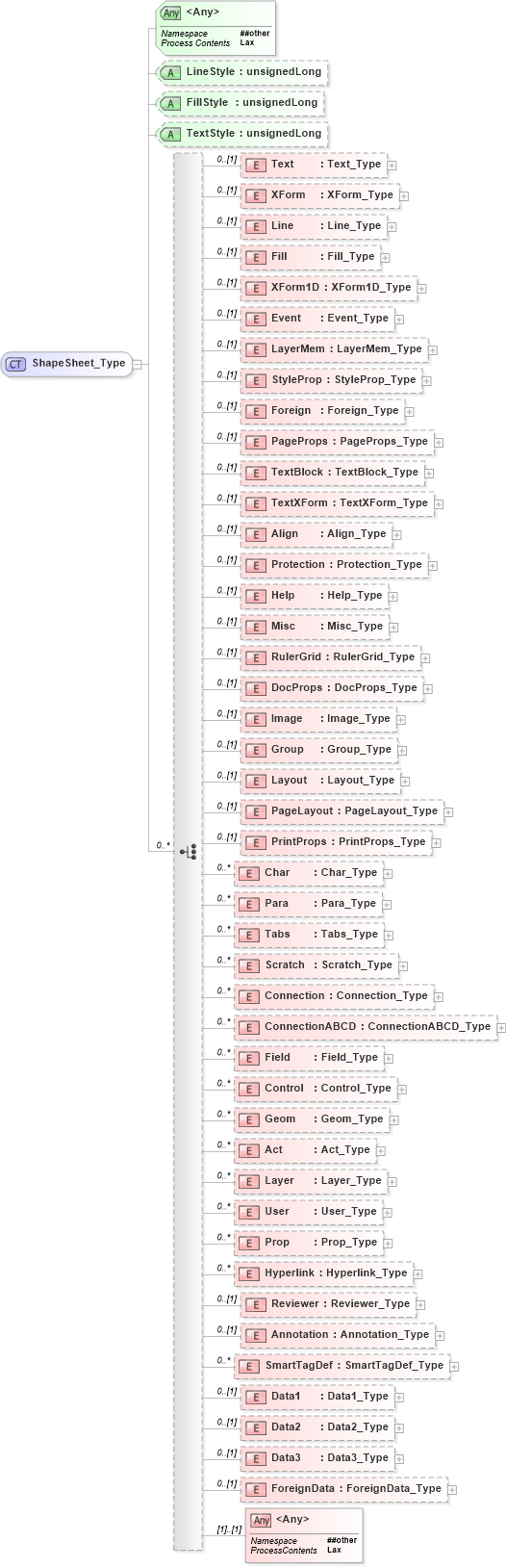

Collapse XSD Schema Diagram:
Drilldown into ForeignData in schema visio_xsd Drilldown into Data3 in schema visio_xsd Drilldown into Data2 in schema visio_xsd Drilldown into Data1 in schema visio_xsd Drilldown into SmartTagDef in schema visio_xsd Drilldown into Annotation in schema visio_xsd Drilldown into Reviewer in schema visio_xsd Drilldown into Hyperlink in schema visio_xsd Drilldown into Prop in schema visio_xsd Drilldown into User in schema visio_xsd Drilldown into Layer in schema visio_xsd Drilldown into Act in schema visio_xsd Drilldown into Geom in schema visio_xsd Drilldown into Control in schema visio_xsd Drilldown into Field in schema visio_xsd Drilldown into ConnectionABCD in schema visio_xsd Drilldown into Connection in schema visio_xsd Drilldown into Scratch in schema visio_xsd Drilldown into Tabs in schema visio_xsd Drilldown into Para in schema visio_xsd Drilldown into Char in schema visio_xsd Drilldown into PrintProps in schema visio_xsd Drilldown into PageLayout in schema visio_xsd Drilldown into Layout in schema visio_xsd Drilldown into Group in schema visio_xsd Drilldown into Image in schema visio_xsd Drilldown into DocProps in schema visio_xsd Drilldown into RulerGrid in schema visio_xsd Drilldown into Misc in schema visio_xsd Drilldown into Help in schema visio_xsd Drilldown into Protection in schema visio_xsd Drilldown into Align in schema visio_xsd Drilldown into TextXForm in schema visio_xsd Drilldown into TextBlock in schema visio_xsd Drilldown into PageProps in schema visio_xsd Drilldown into Foreign in schema visio_xsd Drilldown into StyleProp in schema visio_xsd Drilldown into LayerMem in schema visio_xsd Drilldown into Event in schema visio_xsd Drilldown into XForm1D in schema visio_xsd Drilldown into Fill in schema visio_xsd Drilldown into Line in schema visio_xsd Drilldown into XForm in schema visio_xsd Drilldown into Text in schema visio_xsd Drilldown into TextStyle in schema visio_xsd Drilldown into FillStyle in schema visio_xsd Drilldown into LineStyle in schema visio_xsdXSD Diagram of ShapeSheet_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="ShapeSheet_Type">
    <xsd:choice minOccurs="0" maxOccurs="unbounded">
        <xsd:element name="Text" type="Text_Type" minOccurs="0" />
        <xsd:element name="XForm" type="XForm_Type" minOccurs="0" />
        <xsd:element name="Line" type="Line_Type" minOccurs="0" />
        <xsd:element name="Fill" type="Fill_Type" minOccurs="0" />
        <xsd:element name="XForm1D" type="XForm1D_Type" minOccurs="0" />
        <xsd:element name="Event" type="Event_Type" minOccurs="0" />
        <xsd:element name="LayerMem" type="LayerMem_Type" minOccurs="0" />
        <xsd:element name="StyleProp" type="StyleProp_Type" minOccurs="0" />
        <xsd:element name="Foreign" type="Foreign_Type" minOccurs="0" />
        <xsd:element name="PageProps" type="PageProps_Type" minOccurs="0" />
        <xsd:element name="TextBlock" type="TextBlock_Type" minOccurs="0" />
        <xsd:element name="TextXForm" type="TextXForm_Type" minOccurs="0" />
        <xsd:element name="Align" type="Align_Type" minOccurs="0" />
        <xsd:element name="Protection" type="Protection_Type" minOccurs="0" />
        <xsd:element name="Help" type="Help_Type" minOccurs="0" />
        <xsd:element name="Misc" type="Misc_Type" minOccurs="0" />
        <xsd:element name="RulerGrid" type="RulerGrid_Type" minOccurs="0" />
        <xsd:element name="DocProps" type="DocProps_Type" minOccurs="0" />
        <xsd:element name="Image" type="Image_Type" minOccurs="0" />
        <xsd:element name="Group" type="Group_Type" minOccurs="0" />
        <xsd:element name="Layout" type="Layout_Type" minOccurs="0" />
        <xsd:element name="PageLayout" type="PageLayout_Type" minOccurs="0" />
        <xsd:element name="PrintProps" type="PrintProps_Type" minOccurs="0" />
        <xsd:element name="Char" type="Char_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Para" type="Para_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Tabs" type="Tabs_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Scratch" type="Scratch_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Connection" type="Connection_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="ConnectionABCD" type="ConnectionABCD_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Field" type="Field_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Control" type="Control_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Geom" type="Geom_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Act" type="Act_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Layer" type="Layer_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="User" type="User_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Prop" type="Prop_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Hyperlink" type="Hyperlink_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Reviewer" type="Reviewer_Type" minOccurs="0" />
        <xsd:element name="Annotation" type="Annotation_Type" minOccurs="0" />
        <xsd:element name="SmartTagDef" type="SmartTagDef_Type" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Data1" type="Data1_Type" minOccurs="0" />
        <xsd:element name="Data2" type="Data2_Type" minOccurs="0" />
        <xsd:element name="Data3" type="Data3_Type" minOccurs="0" />
        <xsd:element name="ForeignData" type="ForeignData_Type" minOccurs="0" />
        <xsd:any namespace="##other" processContents="lax" />
    </xsd:choice>
    <xsd:attribute name="LineStyle" type="xsd:unsignedLong" />
    <xsd:attribute name="FillStyle" type="xsd:unsignedLong" />
    <xsd:attribute name="TextStyle" type="xsd:unsignedLong" />
    <xsd:anyAttribute namespace="##other" processContents="lax" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Text nsA:Text 0 (1)
XForm nsA:XForm 0 (1)
Line nsA:Line 0 (1)
Fill nsA:Fill 0 (1)
XForm1D nsA:XForm1D 0 (1)
Event nsA:Event 0 (1)
LayerMem nsA:LayerMem 0 (1)
StyleProp nsA:StyleProp 0 (1)
Foreign nsA:Foreign 0 (1)
PageProps nsA:PageProps 0 (1)
TextBlock nsA:TextBlock 0 (1)
TextXForm nsA:TextXForm 0 (1)
Align nsA:Align 0 (1)
Protection nsA:Protection 0 (1)
Help nsA:Help 0 (1)
Misc nsA:Misc 0 (1)
RulerGrid nsA:RulerGrid 0 (1)
DocProps nsA:DocProps 0 (1)
Image nsA:Image 0 (1)
Group nsA:Group 0 (1)
Layout nsA:Layout 0 (1)
PageLayout nsA:PageLayout 0 (1)
PrintProps nsA:PrintProps 0 (1)
Char nsA:Char 0 unbounded
Para nsA:Para 0 unbounded
Tabs nsA:Tabs 0 unbounded
Scratch nsA:Scratch 0 unbounded
Connection nsA:Connection 0 unbounded
ConnectionABCD nsA:ConnectionABCD 0 unbounded
Field nsA:Field 0 unbounded
Control nsA:Control 0 unbounded
Geom nsA:Geom 0 unbounded
Act nsA:Act 0 unbounded
Layer nsA:Layer 0 unbounded
User nsA:User 0 unbounded
Prop nsA:Prop 0 unbounded
Hyperlink nsA:Hyperlink 0 unbounded
Reviewer nsA:Reviewer 0 (1)
Annotation nsA:Annotation 0 (1)
SmartTagDef nsA:SmartTagDef 0 unbounded
Data1 nsA:Data1 0 (1)
Data2 nsA:Data2 0 (1)
Data3 nsA:Data3 0 (1)
ForeignData nsA:ForeignData 0 (1)
<xs:any> Allowed namespace: '##other' (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
LineStyle nsA:LineStyle (Optional)
FillStyle nsA:FillStyle (Optional)
TextStyle nsA:TextStyle (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:DocumentSheet_Type, nsA:PageSheet_Type, nsA:Shape_Type, nsA:StyleSheet_Type
