Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: OFX
Namespace: http://ofx.net/types/2003/04
Containing Schema: OFX2_Protocol.xsd
Abstract
Documentation:
The OFX element "OFX" is of type "Ofx"

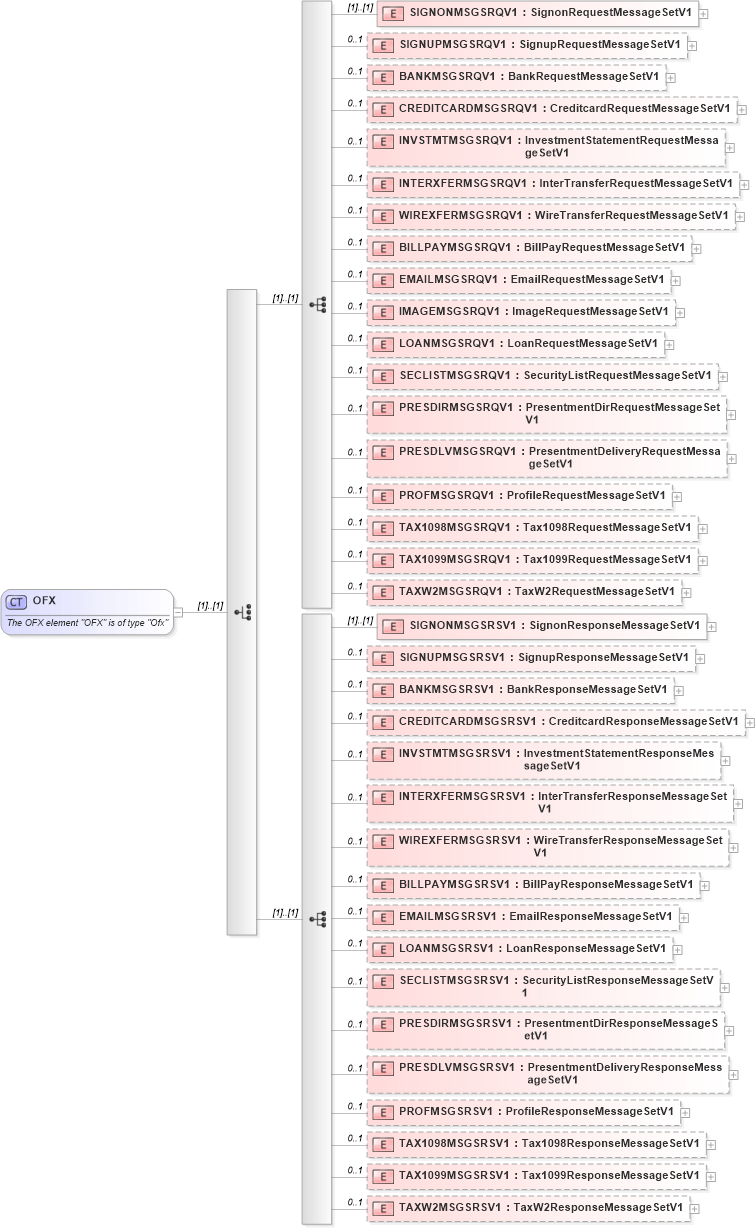

Collapse XSD Schema Diagram:
Drilldown into TAXW2MSGSRSV1 in schema ofx2_protocol_xsd Drilldown into TAX1099MSGSRSV1 in schema ofx2_protocol_xsd Drilldown into TAX1098MSGSRSV1 in schema ofx2_protocol_xsd Drilldown into PROFMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into PRESDLVMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into PRESDIRMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into SECLISTMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into LOANMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into EMAILMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into BILLPAYMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into WIREXFERMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into INTERXFERMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into INVSTMTMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into CREDITCARDMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into BANKMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into SIGNUPMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into SIGNONMSGSRSV1 in schema ofx2_protocol_xsd Drilldown into TAXW2MSGSRQV1 in schema ofx2_protocol_xsd Drilldown into TAX1099MSGSRQV1 in schema ofx2_protocol_xsd Drilldown into TAX1098MSGSRQV1 in schema ofx2_protocol_xsd Drilldown into PROFMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into PRESDLVMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into PRESDIRMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into SECLISTMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into LOANMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into IMAGEMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into EMAILMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into BILLPAYMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into WIREXFERMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into INTERXFERMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into INVSTMTMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into CREDITCARDMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into BANKMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into SIGNUPMSGSRQV1 in schema ofx2_protocol_xsd Drilldown into SIGNONMSGSRQV1 in schema ofx2_protocol_xsdXSD Diagram of OFX in schema ofx2_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="OFX">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "OFX" is of type "Ofx"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:sequence>
            <xsd:element name="SIGNONMSGSRQV1" type="ofx:SignonRequestMessageSetV1" />
            <xsd:element name="SIGNUPMSGSRQV1" type="ofx:SignupRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="BANKMSGSRQV1" type="ofx:BankRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="CREDITCARDMSGSRQV1" type="ofx:CreditcardRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="INVSTMTMSGSRQV1" type="ofx:InvestmentStatementRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="INTERXFERMSGSRQV1" type="ofx:InterTransferRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="WIREXFERMSGSRQV1" type="ofx:WireTransferRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="BILLPAYMSGSRQV1" type="ofx:BillPayRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="EMAILMSGSRQV1" type="ofx:EmailRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="IMAGEMSGSRQV1" type="ofx:ImageRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="LOANMSGSRQV1" type="ofx:LoanRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="SECLISTMSGSRQV1" type="ofx:SecurityListRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="PRESDIRMSGSRQV1" type="ofx:PresentmentDirRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="PRESDLVMSGSRQV1" type="ofx:PresentmentDeliveryRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="PROFMSGSRQV1" type="ofx:ProfileRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="TAX1098MSGSRQV1" type="ofx:Tax1098RequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="TAX1099MSGSRQV1" type="ofx:Tax1099RequestMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="TAXW2MSGSRQV1" type="ofx:TaxW2RequestMessageSetV1" minOccurs="0" maxOccurs="1" />
        </xsd:sequence>
        <xsd:sequence>
            <xsd:element name="SIGNONMSGSRSV1" type="ofx:SignonResponseMessageSetV1" />
            <xsd:element name="SIGNUPMSGSRSV1" type="ofx:SignupResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="BANKMSGSRSV1" type="ofx:BankResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="CREDITCARDMSGSRSV1" type="ofx:CreditcardResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="INVSTMTMSGSRSV1" type="ofx:InvestmentStatementResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="INTERXFERMSGSRSV1" type="ofx:InterTransferResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="WIREXFERMSGSRSV1" type="ofx:WireTransferResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="BILLPAYMSGSRSV1" type="ofx:BillPayResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="EMAILMSGSRSV1" type="ofx:EmailResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="LOANMSGSRSV1" type="ofx:LoanResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="SECLISTMSGSRSV1" type="ofx:SecurityListResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="PRESDIRMSGSRSV1" type="ofx:PresentmentDirResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="PRESDLVMSGSRSV1" type="ofx:PresentmentDeliveryResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="PROFMSGSRSV1" type="ofx:ProfileResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="TAX1098MSGSRSV1" type="ofx:Tax1098ResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="TAX1099MSGSRSV1" type="ofx:Tax1099ResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
            <xsd:element name="TAXW2MSGSRSV1" type="ofx:TaxW2ResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
        </xsd:sequence>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SIGNONMSGSRQV1 ofx:SIGNONMSGSRQV1 (1) (1)
SIGNUPMSGSRQV1 ofx:SIGNUPMSGSRQV1 0 1
BANKMSGSRQV1 ofx:BANKMSGSRQV1 0 1
CREDITCARDMSGSRQV1 ofx:CREDITCARDMSGSRQV1 0 1
INVSTMTMSGSRQV1 ofx:INVSTMTMSGSRQV1 0 1
INTERXFERMSGSRQV1 ofx:INTERXFERMSGSRQV1 0 1
WIREXFERMSGSRQV1 ofx:WIREXFERMSGSRQV1 0 1
BILLPAYMSGSRQV1 ofx:BILLPAYMSGSRQV1 0 1
EMAILMSGSRQV1 ofx:EMAILMSGSRQV1 0 1
IMAGEMSGSRQV1 ofx:IMAGEMSGSRQV1 0 1
LOANMSGSRQV1 ofx:LOANMSGSRQV1 0 1
SECLISTMSGSRQV1 ofx:SECLISTMSGSRQV1 0 1
PRESDIRMSGSRQV1 ofx:PRESDIRMSGSRQV1 0 1
PRESDLVMSGSRQV1 ofx:PRESDLVMSGSRQV1 0 1
PROFMSGSRQV1 ofx:PROFMSGSRQV1 0 1
TAX1098MSGSRQV1 ofx:TAX1098MSGSRQV1 0 1
TAX1099MSGSRQV1 ofx:TAX1099MSGSRQV1 0 1
TAXW2MSGSRQV1 ofx:TAXW2MSGSRQV1 0 1
SIGNONMSGSRSV1 ofx:SIGNONMSGSRSV1 (1) (1)
SIGNUPMSGSRSV1 ofx:SIGNUPMSGSRSV1 0 1
BANKMSGSRSV1 ofx:BANKMSGSRSV1 0 1
CREDITCARDMSGSRSV1 ofx:CREDITCARDMSGSRSV1 0 1
INVSTMTMSGSRSV1 ofx:INVSTMTMSGSRSV1 0 1
INTERXFERMSGSRSV1 ofx:INTERXFERMSGSRSV1 0 1
WIREXFERMSGSRSV1 ofx:WIREXFERMSGSRSV1 0 1
BILLPAYMSGSRSV1 ofx:BILLPAYMSGSRSV1 0 1
EMAILMSGSRSV1 ofx:EMAILMSGSRSV1 0 1
LOANMSGSRSV1 ofx:LOANMSGSRSV1 0 1
SECLISTMSGSRSV1 ofx:SECLISTMSGSRSV1 0 1
PRESDIRMSGSRSV1 ofx:PRESDIRMSGSRSV1 0 1
PRESDLVMSGSRSV1 ofx:PRESDLVMSGSRSV1 0 1
PROFMSGSRSV1 ofx:PROFMSGSRSV1 0 1
TAX1098MSGSRSV1 ofx:TAX1098MSGSRSV1 0 1
TAX1099MSGSRSV1 ofx:TAX1099MSGSRSV1 0 1
TAXW2MSGSRSV1 ofx:TAXW2MSGSRSV1 0 1
Collapse Derivation Tree:
Collapse References:
ofx:OFX
