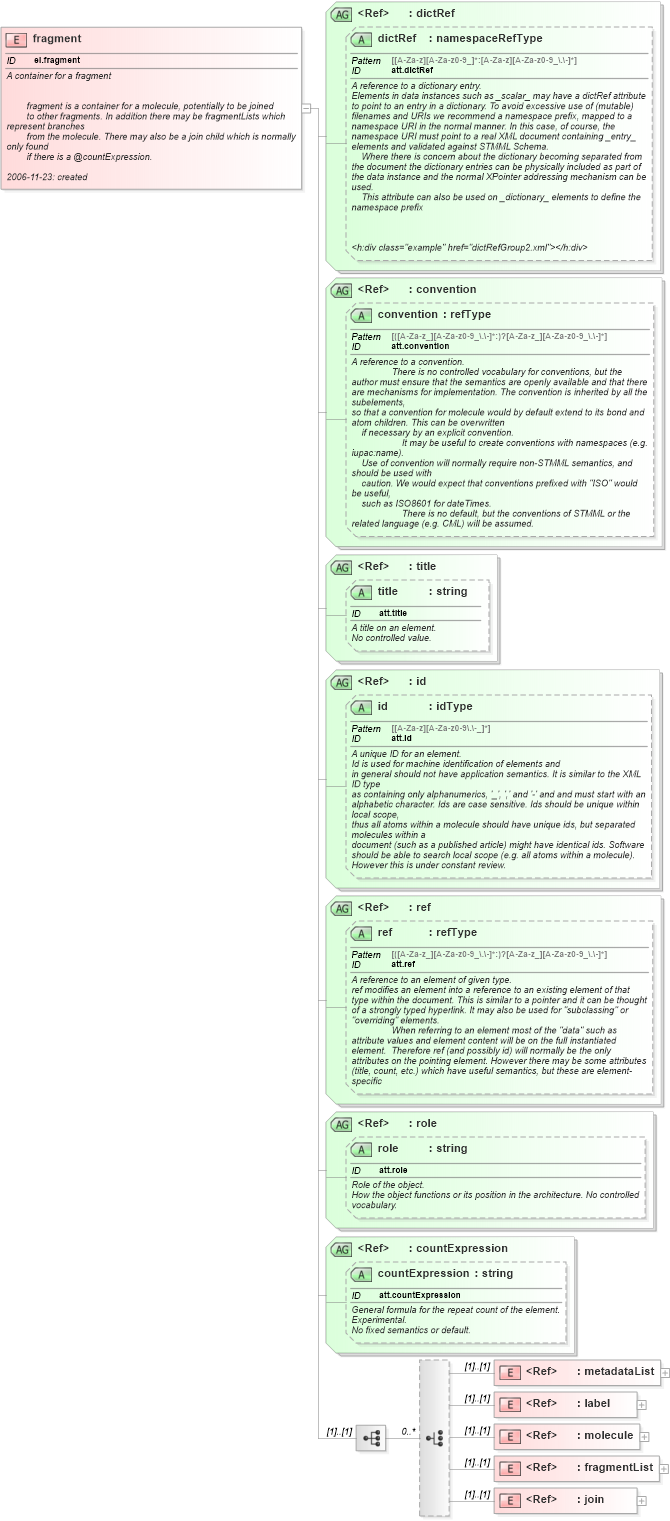

<xsd:element name="fragment" id="el.fragment">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A container for a fragment</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">
                <h:p>
                    <h:tt>fragment</h:tt> is a container for a molecule, potentially to be joined
                    to other fragments. In addition there may be fragmentLists which represent branches
                    from the molecule. There may also be a join child which is normally only found
                    if there is a @countExpression.</h:p>
            </h:div>
            <h:div class="example" href="fragment1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
            <h:div class="curation" xmlns:h="http://www.w3.org/1999/xhtml">2006-11-23: created</h:div>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:annotation>
            <xsd:documentation>
                <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">fragment normally contains molecules</h:div>
            </xsd:documentation>
        </xsd:annotation>
        <xsd:sequence>
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element ref="metadataList" />
                <xsd:element ref="label" />
                <xsd:element ref="molecule" />
                <xsd:element ref="fragmentList">
                    <xsd:annotation>
                        <xsd:documentation>
                            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">branches from the moelcule.</h:div>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="join">
                    <xsd:annotation>
                        <xsd:documentation>
                            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">the inter-fragment join.</h:div>
                            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">
			                Normally it only makes sense with @countExpression.</h:div>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:choice>
        </xsd:sequence>
        <xsd:attributeGroup ref="dictRef" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="ref" />
        <xsd:attributeGroup ref="role">
            <xsd:annotation>
                <xsd:documentation>
                    <h:div class="specific" xmlns:h="http://www.w3.org/1999/xhtml">
                        <h:p>No formal semantics (yet). </h:p>
                    </h:div>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:attributeGroup>
        <xsd:attributeGroup ref="countExpression" />
    </xsd:complexType>
</xsd:element>
