Definition Type: Element
Name: reactionList
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
A container for one or more reactions or reactionSchemes with no interrelations. A reactionList aggregates reactions and reactionSchemes but implies no semantics. The most common uses are to create small collections of reactions (e.g. databases or publications).

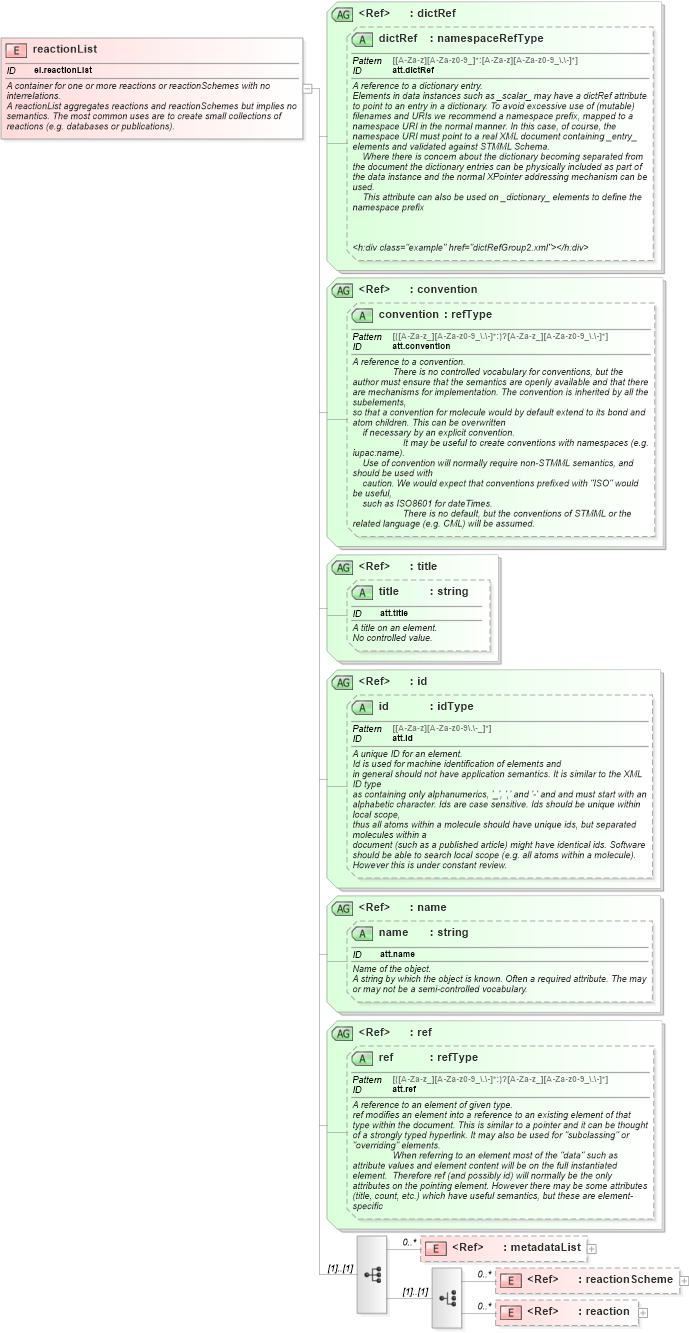

Collapse XSD Schema Diagram:
Drilldown into reaction in schema schema_xsd Drilldown into reactionScheme in schema schema_xsd Drilldown into metadataList in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into name in schema schema_xsd Drilldown into name in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsdXSD Diagram of reactionList in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="reactionList" id="el.reactionList">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A container for one or more reactions or reactionSchemes with no interrelations.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">A reactionList aggregates reactions and reactionSchemes but implies no semantics. The most common uses are to create small collections of reactions (e.g. databases or publications).</h:div>
            <h:div class="example" href="reactionList1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:annotation>
            <xsd:documentation>
                <h:div xmlns:h="http://www.w3.org/1999/xhtml" />
            </xsd:documentation>
        </xsd:annotation>
        <xsd:sequence>
            <xsd:element ref="metadataList" minOccurs="0" maxOccurs="unbounded" />
            <xsd:choice>
                <xsd:element ref="reactionScheme" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="reaction" minOccurs="0" maxOccurs="unbounded" />
            </xsd:choice>
        </xsd:sequence>
        <xsd:attributeGroup ref="dictRef" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="name" />
        <xsd:attributeGroup ref="ref" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metadataList nsA:metadataList 0 unbounded
reactionScheme nsA:reactionScheme 0 unbounded
reaction nsA:reaction 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
dictRef nsA:dictRef (Optional)
convention nsA:convention (Optional)
title nsA:title (Optional)
id nsA:id (Optional)
name nsA:name (Optional)
ref nsA:ref (Optional)
