Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fxTargetKnockoutForward
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxTargetKnockoutForward
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract
Documentation:
A structured forward product which consists of a strip of forwards. Each forward may be settled as an exchange of currencies or cash settled. At each settlement, the amount of gain that one party achieves is measured. The product has a target level of gain. Once the accumulated gain exceeds the target level, the product terminates and there are no further settlements.

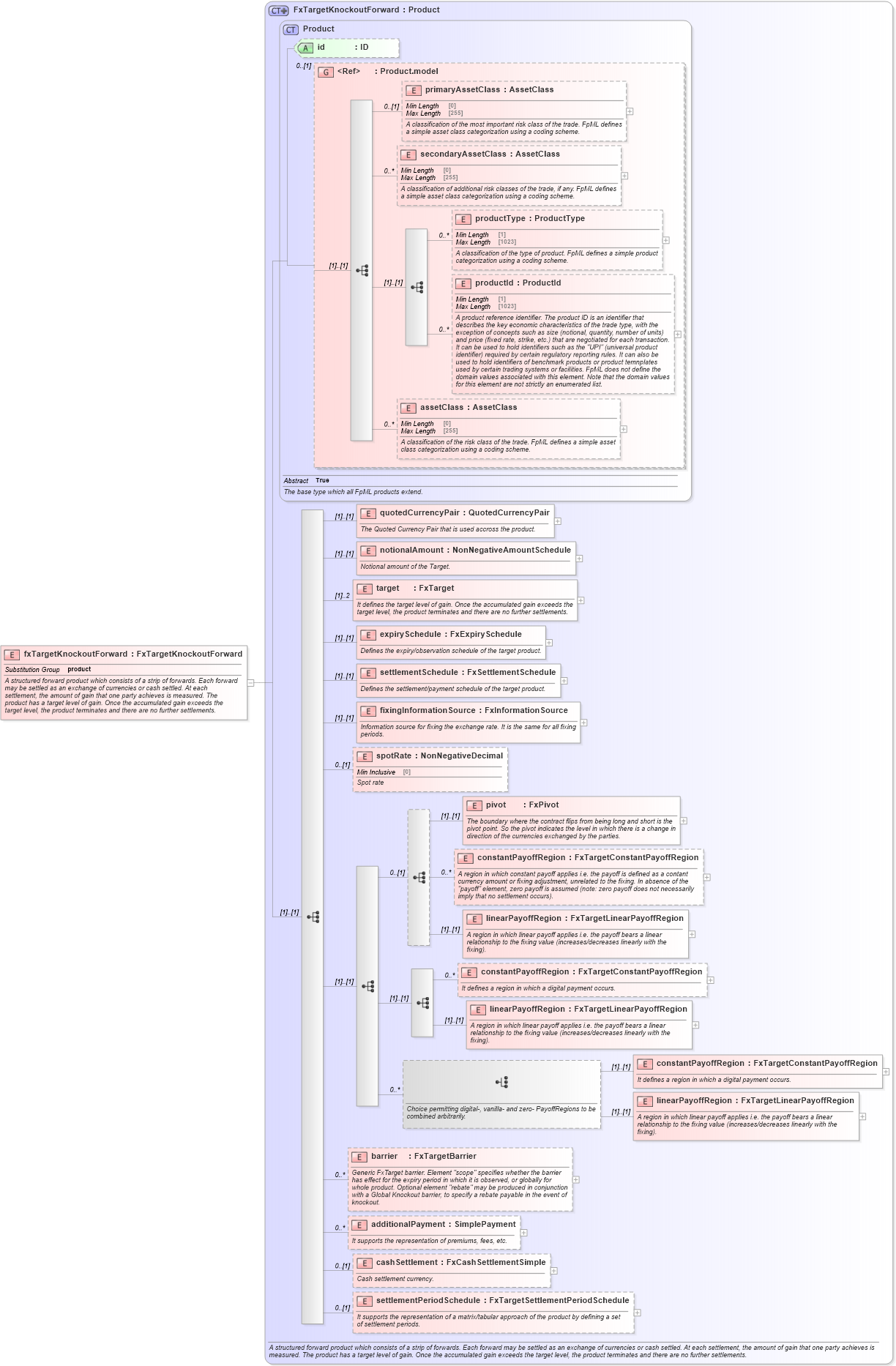

Collapse XSD Schema Diagram:
Drilldown into settlementPeriodSchedule in schema fpml-fx-targets-5-10_xsd Drilldown into cashSettlement in schema fpml-fx-targets-5-10_xsd Drilldown into additionalPayment in schema fpml-fx-targets-5-10_xsd Drilldown into barrier in schema fpml-fx-targets-5-10_xsd Drilldown into linearPayoffRegion in schema fpml-fx-targets-5-10_xsd Drilldown into constantPayoffRegion in schema fpml-fx-targets-5-10_xsd Drilldown into linearPayoffRegion in schema fpml-fx-targets-5-10_xsd Drilldown into constantPayoffRegion in schema fpml-fx-targets-5-10_xsd Drilldown into linearPayoffRegion in schema fpml-fx-targets-5-10_xsd Drilldown into constantPayoffRegion in schema fpml-fx-targets-5-10_xsd Drilldown into pivot in schema fpml-fx-targets-5-10_xsd Drilldown into spotRate in schema fpml-fx-targets-5-10_xsd Drilldown into fixingInformationSource in schema fpml-fx-targets-5-10_xsd Drilldown into settlementSchedule in schema fpml-fx-targets-5-10_xsd Drilldown into expirySchedule in schema fpml-fx-targets-5-10_xsd Drilldown into target in schema fpml-fx-targets-5-10_xsd Drilldown into notionalAmount in schema fpml-fx-targets-5-10_xsd Drilldown into quotedCurrencyPair in schema fpml-fx-targets-5-10_xsd Drilldown into assetClass in schema fpml-shared-5-10_xsd Drilldown into productId in schema fpml-shared-5-10_xsd Drilldown into productType in schema fpml-shared-5-10_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into Product.model in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Product in schema fpml-shared-5-10_xsd Drilldown into FxTargetKnockoutForward in schema fpml-fx-targets-5-10_xsdXSD Diagram of fxTargetKnockoutForward in schema fpml-fx-targets-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxTargetKnockoutForward" type="FxTargetKnockoutForward" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structured forward product which consists of a strip of forwards. Each forward may be settled as an exchange of currencies or cash settled. At each settlement, the amount of gain that one party achieves is measured. The product has a target level of gain. Once the accumulated gain exceeds the target level, the product terminates and there are no further settlements.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass 0 (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
assetClass nsA:assetClass 0 unbounded
quotedCurrencyPair nsA:quotedCurrencyPair (1) (1)
notionalAmount nsA:notionalAmount (1) (1)
target nsA:target (1) 2
expirySchedule nsA:expirySchedule (1) (1)
settlementSchedule nsA:settlementSchedule (1) (1)
fixingInformationSource nsA:fixingInformationSource (1) (1)
spotRate nsA:spotRate 0 (1)
pivot nsA:pivot (1) (1)
constantPayoffRegion nsA:constantPayoffRegion 0 unbounded
linearPayoffRegion nsA:linearPayoffRegion (1) (1)
constantPayoffRegion nsA:constantPayoffRegion 0 unbounded
linearPayoffRegion nsA:linearPayoffRegion (1) (1)
constantPayoffRegion nsA:constantPayoffRegion (1) (1)
linearPayoffRegion nsA:linearPayoffRegion (1) (1)
barrier nsA:barrier 0 unbounded
additionalPayment nsA:additionalPayment 0 unbounded
cashSettlement nsA:cashSettlement 0 (1)
settlementPeriodSchedule nsA:settlementPeriodSchedule 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:product
