Docs for schema item BusinessObjectDocumentType in Standards for Technology in Automotive Retail

Documentation for Standards for Technology in Automotive Retail

Definition Type:	ComplexType
Name:	BusinessObjectDocumentType
Namespace:	http://www.starstandard.org/STAR/5
Containing Schema:	Meta.xsd
Abstract
Documentation:	Is the schema based inheritance for all BODs. The logical model would also include the DataArea.

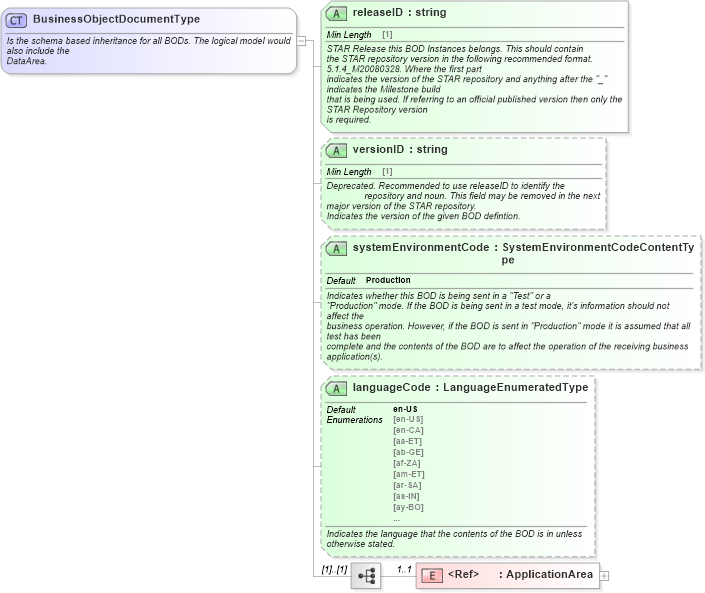

XSD Schema Diagram:

XSD Diagram of BusinessObjectDocumentType in schema meta_xsd (Standards for Technology in Automotive Retail)

XSD Schema Code:

<xsd:complexType name="BusinessObjectDocumentType">
    <xsd:annotation>
        <xsd:documentation>Is the schema based inheritance for all BODs. The logical model would also include the
            DataArea.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="1" ref="ApplicationArea">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">Provides the information that an application may need to know
                  in order to communicate in an integration of two or more business applications. The ApplicationArea is
                  used at the applications layer of communication. While the integration frameworks web services and
                  middleware provide the communication layer that OAGIS operates on top of.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="releaseID" type="udt:string" use="required">
        <xsd:annotation>
            <xsd:documentation source="http://www.openapplications.org/oagis/9.0"> STAR Release this BOD Instances belongs. This should contain
               the STAR repository version in the following recommended format. 5.1.4_M20080328. Where the first part
               indicates the version of the STAR repository and anything after the "_" indicates the Milestone build
               that is being used. If referring to an official published version then only the STAR Repository version
               is required.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="versionID" type="udt:string" use="optional">
        <xsd:annotation>
            <xsd:documentation source="http://www.starstandard.org">Deprecated. Recommended to use releaseID to identify the
               repository and noun. This field may be removed in the next major version of the STAR repository.
            </xsd:documentation>
            <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the version of the given BOD defintion.
            </xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute default="Production" name="systemEnvironmentCode" type="oacl:SystemEnvironmentCodeContentType" use="optional">
        <xsd:annotation>
            <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates whether this BOD is being sent in a "Test" or a
               "Production" mode. If the BOD is being sent in a test mode, it's information should not affect the
               business operation. However, if the BOD is sent in "Production" mode it is assumed that all test has been
               complete and the contents of the BOD are to affect the operation of the receiving business
               application(s).</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute default="en-US" name="languageCode" type="scl:LanguageEnumeratedType" use="optional">
        <xsd:annotation>
            <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the language that the contents of the BOD is in unless
               otherwise stated.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
ApplicationArea	star:ApplicationArea	1	1

Child Attributes:

Name	Type	Default Value	Use
releaseID	star:releaseID		Required
versionID	star:versionID		Optional
systemEnvironmentCode	star:systemEnvironmentCode	Production	Optional
languageCode	star:languageCode	en-US	Optional
