Definition Type: ComplexType
Name: X3DPickingNode
Type: X3DSensorNode
Containing Schema: x3d-3.2.xsd
Abstract True

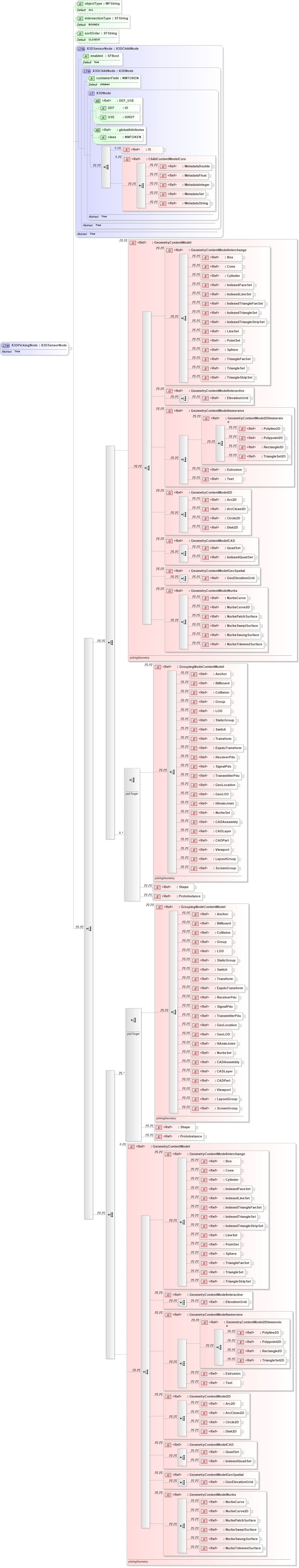

Collapse XSD Schema Diagram:
Drilldown into NurbsTrimmedSurface in schema x3d-3_2_xsd Drilldown into NurbsSwungSurface in schema x3d-3_2_xsd Drilldown into NurbsSweptSurface in schema x3d-3_2_xsd Drilldown into NurbsPatchSurface in schema x3d-3_2_xsd Drilldown into NurbsCurve2D in schema x3d-3_2_xsd Drilldown into NurbsCurve in schema x3d-3_2_xsd Drilldown into GeometryContentModelNurbs in schema x3d-3_2_xsd Drilldown into GeoElevationGrid in schema x3d-3_2_xsd Drilldown into GeometryContentModelGeoSpatial in schema x3d-3_2_xsd Drilldown into IndexedQuadSet in schema x3d-3_2_xsd Drilldown into QuadSet in schema x3d-3_2_xsd Drilldown into GeometryContentModelCAD in schema x3d-3_2_xsd Drilldown into Disk2D in schema x3d-3_2_xsd Drilldown into Circle2D in schema x3d-3_2_xsd Drilldown into ArcClose2D in schema x3d-3_2_xsd Drilldown into Arc2D in schema x3d-3_2_xsd Drilldown into GeometryContentModel2D in schema x3d-3_2_xsd Drilldown into Text in schema x3d-3_2_xsd Drilldown into Extrusion in schema x3d-3_2_xsd Drilldown into TriangleSet2D in schema x3d-3_2_xsd Drilldown into Rectangle2D in schema x3d-3_2_xsd Drilldown into Polypoint2D in schema x3d-3_2_xsd Drilldown into Polyline2D in schema x3d-3_2_xsd Drilldown into GeometryContentModel2DImmersive in schema x3d-3_2_xsd Drilldown into GeometryContentModelImmersive in schema x3d-3_2_xsd Drilldown into ElevationGrid in schema x3d-3_2_xsd Drilldown into GeometryContentModelInteractive in schema x3d-3_2_xsd Drilldown into TriangleStripSet in schema x3d-3_2_xsd Drilldown into TriangleSet in schema x3d-3_2_xsd Drilldown into TriangleFanSet in schema x3d-3_2_xsd Drilldown into Sphere in schema x3d-3_2_xsd Drilldown into PointSet in schema x3d-3_2_xsd Drilldown into LineSet in schema x3d-3_2_xsd Drilldown into IndexedTriangleStripSet in schema x3d-3_2_xsd Drilldown into IndexedTriangleSet in schema x3d-3_2_xsd Drilldown into IndexedTriangleFanSet in schema x3d-3_2_xsd Drilldown into IndexedLineSet in schema x3d-3_2_xsd Drilldown into IndexedFaceSet in schema x3d-3_2_xsd Drilldown into Cylinder in schema x3d-3_2_xsd Drilldown into Cone in schema x3d-3_2_xsd Drilldown into Box in schema x3d-3_2_xsd Drilldown into GeometryContentModelInterchange in schema x3d-3_2_xsd Drilldown into GeometryContentModel in schema x3d-3_2_xsd Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into Shape in schema x3d-3_2_xsd Drilldown into ScreenGroup in schema x3d-3_2_xsd Drilldown into LayoutGroup in schema x3d-3_2_xsd Drilldown into Viewport in schema x3d-3_2_xsd Drilldown into CADPart in schema x3d-3_2_xsd Drilldown into CADLayer in schema x3d-3_2_xsd Drilldown into CADAssembly in schema x3d-3_2_xsd Drilldown into NurbsSet in schema x3d-3_2_xsd Drilldown into HAnimJoint in schema x3d-3_2_xsd Drilldown into GeoLOD in schema x3d-3_2_xsd Drilldown into GeoLocation in schema x3d-3_2_xsd Drilldown into TransmitterPdu in schema x3d-3_2_xsd Drilldown into SignalPdu in schema x3d-3_2_xsd Drilldown into ReceiverPdu in schema x3d-3_2_xsd Drilldown into EspduTransform in schema x3d-3_2_xsd Drilldown into Transform in schema x3d-3_2_xsd Drilldown into Switch in schema x3d-3_2_xsd Drilldown into StaticGroup in schema x3d-3_2_xsd Drilldown into LOD in schema x3d-3_2_xsd Drilldown into Group in schema x3d-3_2_xsd Drilldown into Collision in schema x3d-3_2_xsd Drilldown into Billboard in schema x3d-3_2_xsd Drilldown into Anchor in schema x3d-3_2_xsd Drilldown into GroupingNodeContentModel in schema x3d-3_2_xsd Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into Shape in schema x3d-3_2_xsd Drilldown into ScreenGroup in schema x3d-3_2_xsd Drilldown into LayoutGroup in schema x3d-3_2_xsd Drilldown into Viewport in schema x3d-3_2_xsd Drilldown into CADPart in schema x3d-3_2_xsd Drilldown into CADLayer in schema x3d-3_2_xsd Drilldown into CADAssembly in schema x3d-3_2_xsd Drilldown into NurbsSet in schema x3d-3_2_xsd Drilldown into HAnimJoint in schema x3d-3_2_xsd Drilldown into GeoLOD in schema x3d-3_2_xsd Drilldown into GeoLocation in schema x3d-3_2_xsd Drilldown into TransmitterPdu in schema x3d-3_2_xsd Drilldown into SignalPdu in schema x3d-3_2_xsd Drilldown into ReceiverPdu in schema x3d-3_2_xsd Drilldown into EspduTransform in schema x3d-3_2_xsd Drilldown into Transform in schema x3d-3_2_xsd Drilldown into Switch in schema x3d-3_2_xsd Drilldown into StaticGroup in schema x3d-3_2_xsd Drilldown into LOD in schema x3d-3_2_xsd Drilldown into Group in schema x3d-3_2_xsd Drilldown into Collision in schema x3d-3_2_xsd Drilldown into Billboard in schema x3d-3_2_xsd Drilldown into Anchor in schema x3d-3_2_xsd Drilldown into GroupingNodeContentModel in schema x3d-3_2_xsd Drilldown into NurbsTrimmedSurface in schema x3d-3_2_xsd Drilldown into NurbsSwungSurface in schema x3d-3_2_xsd Drilldown into NurbsSweptSurface in schema x3d-3_2_xsd Drilldown into NurbsPatchSurface in schema x3d-3_2_xsd Drilldown into NurbsCurve2D in schema x3d-3_2_xsd Drilldown into NurbsCurve in schema x3d-3_2_xsd Drilldown into GeometryContentModelNurbs in schema x3d-3_2_xsd Drilldown into GeoElevationGrid in schema x3d-3_2_xsd Drilldown into GeometryContentModelGeoSpatial in schema x3d-3_2_xsd Drilldown into IndexedQuadSet in schema x3d-3_2_xsd Drilldown into QuadSet in schema x3d-3_2_xsd Drilldown into GeometryContentModelCAD in schema x3d-3_2_xsd Drilldown into Disk2D in schema x3d-3_2_xsd Drilldown into Circle2D in schema x3d-3_2_xsd Drilldown into ArcClose2D in schema x3d-3_2_xsd Drilldown into Arc2D in schema x3d-3_2_xsd Drilldown into GeometryContentModel2D in schema x3d-3_2_xsd Drilldown into Text in schema x3d-3_2_xsd Drilldown into Extrusion in schema x3d-3_2_xsd Drilldown into TriangleSet2D in schema x3d-3_2_xsd Drilldown into Rectangle2D in schema x3d-3_2_xsd Drilldown into Polypoint2D in schema x3d-3_2_xsd Drilldown into Polyline2D in schema x3d-3_2_xsd Drilldown into GeometryContentModel2DImmersive in schema x3d-3_2_xsd Drilldown into GeometryContentModelImmersive in schema x3d-3_2_xsd Drilldown into ElevationGrid in schema x3d-3_2_xsd Drilldown into GeometryContentModelInteractive in schema x3d-3_2_xsd Drilldown into TriangleStripSet in schema x3d-3_2_xsd Drilldown into TriangleSet in schema x3d-3_2_xsd Drilldown into TriangleFanSet in schema x3d-3_2_xsd Drilldown into Sphere in schema x3d-3_2_xsd Drilldown into PointSet in schema x3d-3_2_xsd Drilldown into LineSet in schema x3d-3_2_xsd Drilldown into IndexedTriangleStripSet in schema x3d-3_2_xsd Drilldown into IndexedTriangleSet in schema x3d-3_2_xsd Drilldown into IndexedTriangleFanSet in schema x3d-3_2_xsd Drilldown into IndexedLineSet in schema x3d-3_2_xsd Drilldown into IndexedFaceSet in schema x3d-3_2_xsd Drilldown into Cylinder in schema x3d-3_2_xsd Drilldown into Cone in schema x3d-3_2_xsd Drilldown into Box in schema x3d-3_2_xsd Drilldown into GeometryContentModelInterchange in schema x3d-3_2_xsd Drilldown into GeometryContentModel in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into enabled in schema x3d-3_2_xsd Drilldown into X3DSensorNode in schema x3d-3_2_xsd Drilldown into sortOrder in schema x3d-3_2_xsd Drilldown into intersectionType in schema x3d-3_2_xsd Drilldown into objectType in schema x3d-3_2_xsdXSD Diagram of X3DPickingNode in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:complexType name="X3DPickingNode" abstract="true" mixed="false">
    <xs:complexContent mixed="false">
        <xs:extension base="X3DSensorNode">
            <xs:choice>
                <xs:sequence>
                    <xs:group ref="GeometryContentModel">
                        <xs:annotation>
                            <xs:documentation>pickingGeometry</xs:documentation>
                        </xs:annotation>
                    </xs:group>
                    <xs:choice minOccurs="0" maxOccurs="unbounded">
                        <xs:annotation>
                            <xs:documentation>pickTarget</xs:documentation>
                        </xs:annotation>
                        <xs:group ref="GroupingNodeContentModel">
                            <xs:annotation>
                                <xs:documentation>pickingGeometry</xs:documentation>
                            </xs:annotation>
                        </xs:group>
                        <xs:element ref="Shape" />
                        <xs:element ref="ProtoInstance" />
                    </xs:choice>
                </xs:sequence>
                <xs:sequence>
                    <xs:choice maxOccurs="unbounded">
                        <xs:annotation>
                            <xs:documentation>pickTarget</xs:documentation>
                        </xs:annotation>
                        <xs:group ref="GroupingNodeContentModel">
                            <xs:annotation>
                                <xs:documentation>pickingGeometry</xs:documentation>
                            </xs:annotation>
                        </xs:group>
                        <xs:element ref="Shape" />
                        <xs:element ref="ProtoInstance" />
                    </xs:choice>
                    <xs:group ref="GeometryContentModel" minOccurs="0">
                        <xs:annotation>
                            <xs:documentation>pickingGeometry</xs:documentation>
                        </xs:annotation>
                    </xs:group>
                </xs:sequence>
            </xs:choice>
            <xs:attribute name="objectType" type="MFString" default="ALL" />
            <xs:attribute name="intersectionType" type="SFString" default="BOUNDS" />
            <xs:attribute name="sortOrder" type="SFString" default="CLOSEST" />
        </xs:extension>
        <!-- TODO:  spec needs to implement X3DPickableObject ??
				<xs:annotation>
					<xs:appinfo>
						<xs:attribute name="otherInterfaces" type="xs:string" fixed="X3DPickableObject"/>
					</xs:appinfo>
				</xs:annotation> -->
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
Box Box (1) (1)
Cone Cone (1) (1)
Cylinder Cylinder (1) (1)
IndexedFaceSet IndexedFaceSet (1) (1)
IndexedLineSet IndexedLineSet (1) (1)
IndexedTriangleFanSet IndexedTriangleFanSet (1) (1)
IndexedTriangleSet IndexedTriangleSet (1) (1)
IndexedTriangleStripSet IndexedTriangleStripSet (1) (1)
LineSet LineSet (1) (1)
PointSet PointSet (1) (1)
Sphere Sphere (1) (1)
TriangleFanSet TriangleFanSet (1) (1)
TriangleSet TriangleSet (1) (1)
TriangleStripSet TriangleStripSet (1) (1)
ElevationGrid ElevationGrid (1) (1)
Polyline2D Polyline2D (1) (1)
Polypoint2D Polypoint2D (1) (1)
Rectangle2D Rectangle2D (1) (1)
TriangleSet2D TriangleSet2D (1) (1)
Extrusion Extrusion (1) (1)
Text Text (1) (1)
Arc2D Arc2D (1) (1)
ArcClose2D ArcClose2D (1) (1)
Circle2D Circle2D (1) (1)
Disk2D Disk2D (1) (1)
QuadSet QuadSet (1) (1)
IndexedQuadSet IndexedQuadSet (1) (1)
GeoElevationGrid GeoElevationGrid (1) (1)
NurbsCurve NurbsCurve (1) (1)
NurbsCurve2D NurbsCurve2D (1) (1)
NurbsPatchSurface NurbsPatchSurface (1) (1)
NurbsSweptSurface NurbsSweptSurface (1) (1)
NurbsSwungSurface NurbsSwungSurface (1) (1)
NurbsTrimmedSurface NurbsTrimmedSurface (1) (1)
Anchor Anchor (1) (1)
Billboard Billboard (1) (1)
Collision Collision (1) (1)
Group Group (1) (1)
LOD LOD (1) (1)
StaticGroup StaticGroup (1) (1)
Switch Switch (1) (1)
Transform Transform (1) (1)
EspduTransform EspduTransform (1) (1)
ReceiverPdu ReceiverPdu (1) (1)
SignalPdu SignalPdu (1) (1)
TransmitterPdu TransmitterPdu (1) (1)
GeoLocation GeoLocation (1) (1)
GeoLOD GeoLOD (1) (1)
HAnimJoint HAnimJoint (1) (1)
NurbsSet NurbsSet (1) (1)
CADAssembly CADAssembly (1) (1)
CADLayer CADLayer (1) (1)
CADPart CADPart (1) (1)
Viewport Viewport (1) (1)
LayoutGroup LayoutGroup (1) (1)
ScreenGroup ScreenGroup (1) (1)
Shape Shape (1) (1)
ProtoInstance ProtoInstance (1) (1)
Shape Shape (1) (1)
ProtoInstance ProtoInstance (1) (1)
<xs:group> ChildContentModelCore 0 (1)
<xs:group> GeometryContentModel (1) (1)
<xs:group> GeometryContentModelInterchange (1) (1)
<xs:group> GeometryContentModelInteractive (1) (1)
<xs:group> GeometryContentModelImmersive (1) (1)
<xs:group> GeometryContentModel2DImmersive (1) (1)
<xs:group> GeometryContentModel2D (1) (1)
<xs:group> GeometryContentModelCAD (1) (1)
<xs:group> GeometryContentModelGeoSpatial (1) (1)
<xs:group> GeometryContentModelNurbs (1) (1)
<xs:group> GroupingNodeContentModel (1) (1)
<xs:group> GroupingNodeContentModel (1) (1)
<xs:group> GeometryContentModel 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
enabled enabled true (Optional)
objectType objectType ALL (Optional)
intersectionType intersectionType BOUNDS (Optional)
sortOrder sortOrder CLOSEST (Optional)
Collapse Derivation Tree:
Collapse References:
LinePickSensor, PointPicker, PrimitivePicker, VolumePickSensor
