Documentation for Chemical Markup Language (CML)
Definition Type: Element
Name: reactantList
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
A container for one or more reactants. reactantList can contain several reactants. These may be related in several ways, including lists of related reactants reactant schemes multi-step reactants parallel and/or coupled reactants . A reactantList can contain nested reactantLists. The semantics of this are currently undefined.

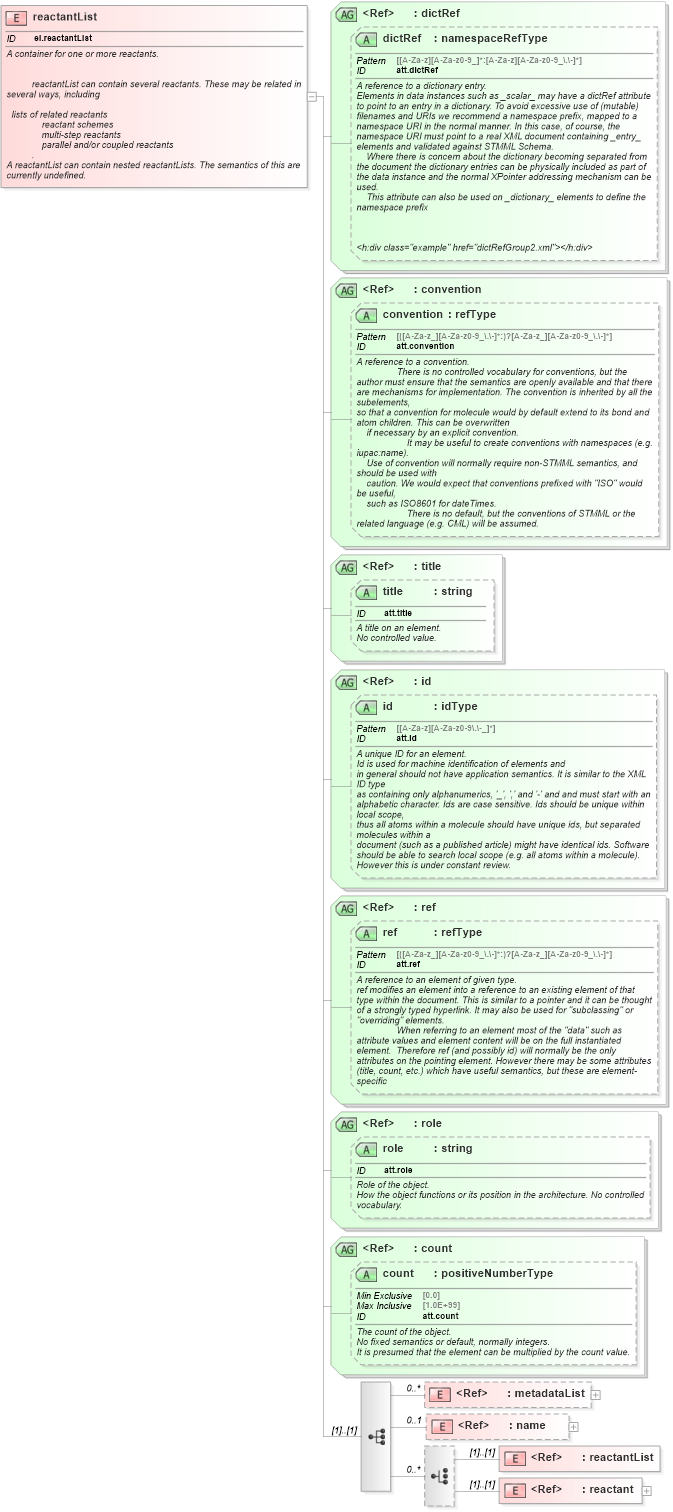

Collapse XSD Schema Diagram:
Drilldown into reactant in schema schema_xsd Drilldown into reactantList in schema schema_xsd Drilldown into name in schema schema_xsd Drilldown into metadataList in schema schema_xsd Drilldown into count in schema schema_xsd Drilldown into count in schema schema_xsd Drilldown into role in schema schema_xsd Drilldown into role in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into ref in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsdXSD Diagram of reactantList in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="reactantList" id="el.reactantList">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A container for one or more reactants.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">
                <h:p>
                    <h:tt>reactantList</h:tt> can contain several reactants. These may be related in several ways, including
          <h:ul><h:li>lists of related reactants</h:li>
                        <h:li>reactant schemes</h:li>
                        <h:li>multi-step reactants</h:li>
                        <h:li>parallel and/or coupled reactants</h:li>
                    </h:ul>.
          A reactantList can contain nested reactantLists. The semantics of this are currently undefined.
        </h:p>
            </h:div>
            <h:div class="example" href="reactantList1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="metadataList" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="name" minOccurs="0" maxOccurs="1" />
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element ref="reactantList" />
                <xsd:element ref="reactant" />
            </xsd:choice>
        </xsd:sequence>
        <xsd:attributeGroup ref="dictRef" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="ref" />
        <xsd:attributeGroup ref="role" />
        <xsd:attributeGroup ref="count" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metadataList nsA:metadataList 0 unbounded
name nsA:name 0 1
reactantList nsA:reactantList (1) (1)
reactant nsA:reactant (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
dictRef nsA:dictRef (Optional)
convention nsA:convention (Optional)
title nsA:title (Optional)
id nsA:id (Optional)
ref nsA:ref (Optional)
role nsA:role (Optional)
count nsA:count (Optional)
